Overview:
The ECUHELP KT200II programmer has been tested on a VW Passat B8 with a DSG DQ500-MQB Bosch* Can ECU, demonstrating successful cloning, full backup, reading, and writing capabilities.
Process:
Car Model and ECU Type:
The test was conducted on a VW Passat with a DSG DQ500-MQB Bosch* Can ECU.
ECU Programmer:
The ECUHELP KT200II was used for the programming tasks.
Test Report:
The reading and writing processes were both 100% successful.
The connection mode used was pinout.
Visual Documentation:

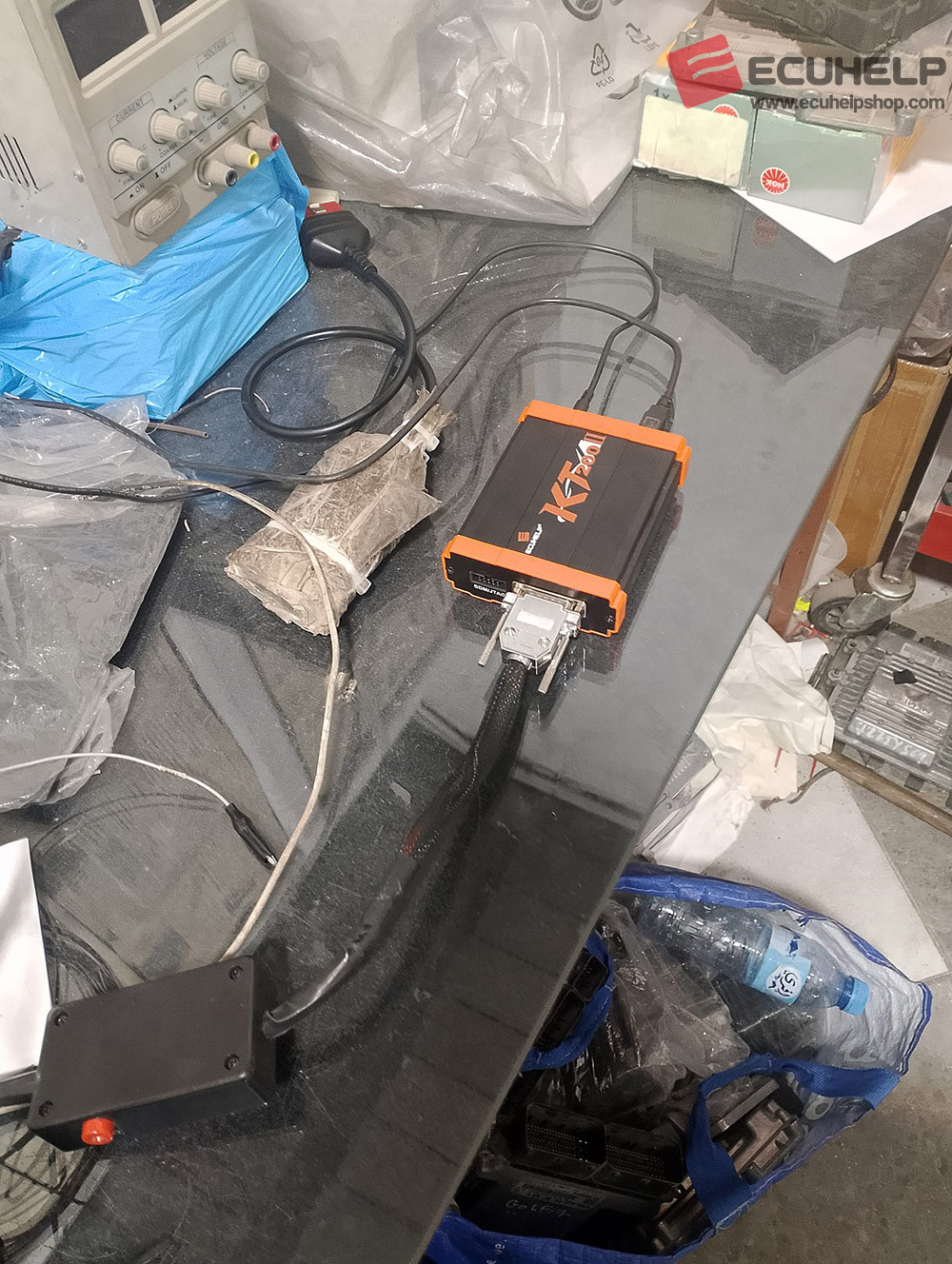

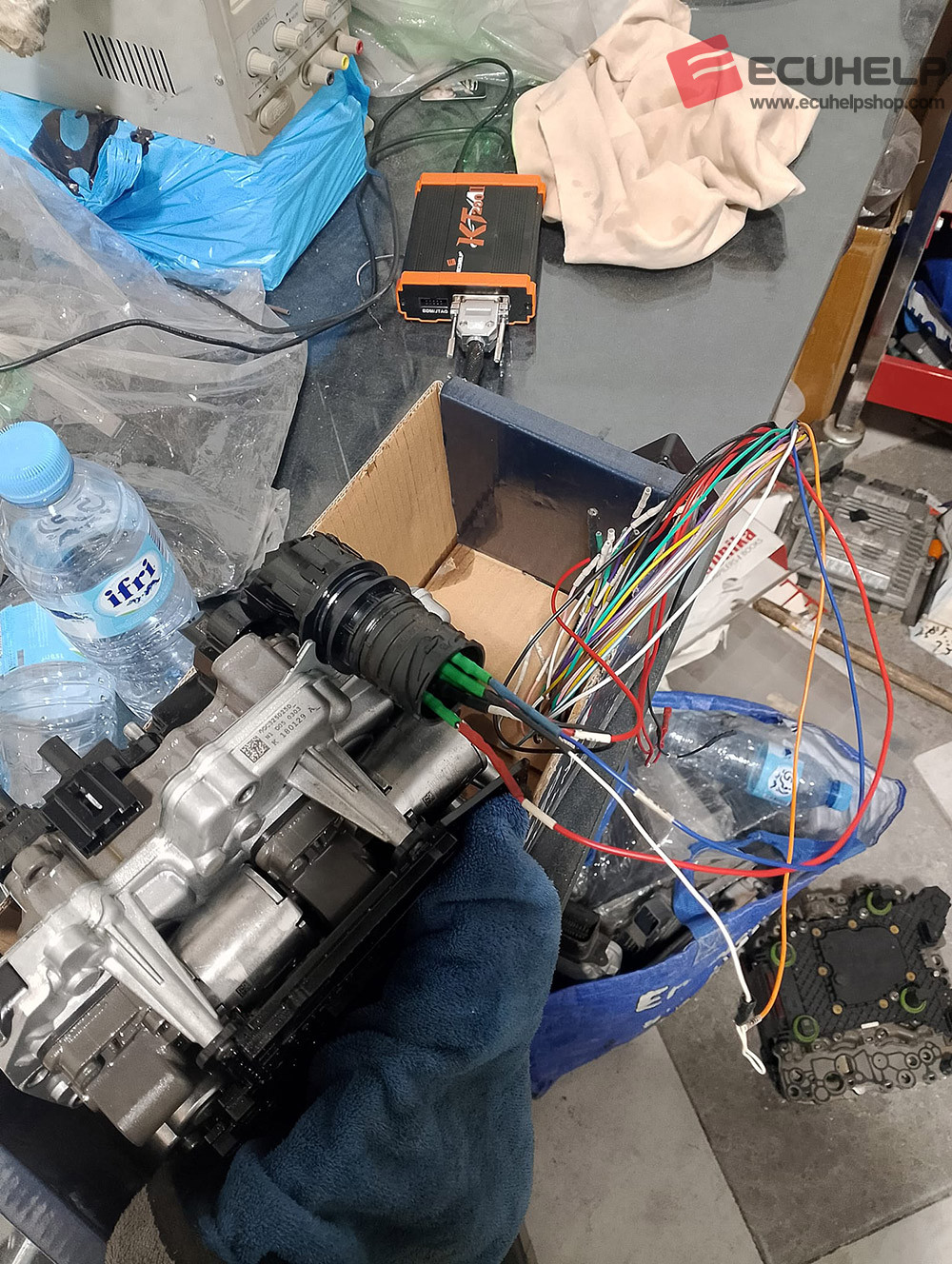

Six images are provided to showcase the KT200II connected to the DQ500 TCU during the reading and writing processes .
Related video demo:
Wiring Diagrams:
A wiring diagram for the Bosch DQ380/DQ381/DQ500 – VAG Group is provided, indicating the use of Cable DFB 6EACBB05 for connection to the control unit .
An alternative connection method using a multifunction cable and round pin connectors is also presented .
Conclusion:
The ECUHELP KT200II programmer has proven to be effective for cloning, full backup, reading, and writing on the VW Passat B8 with a DSG DQ500-MQB Bosch* Can ECU, with a 100% success rate in both reading and writing operations. The provided wiring diagrams offer clear guidance for proper connections during the programming process.
