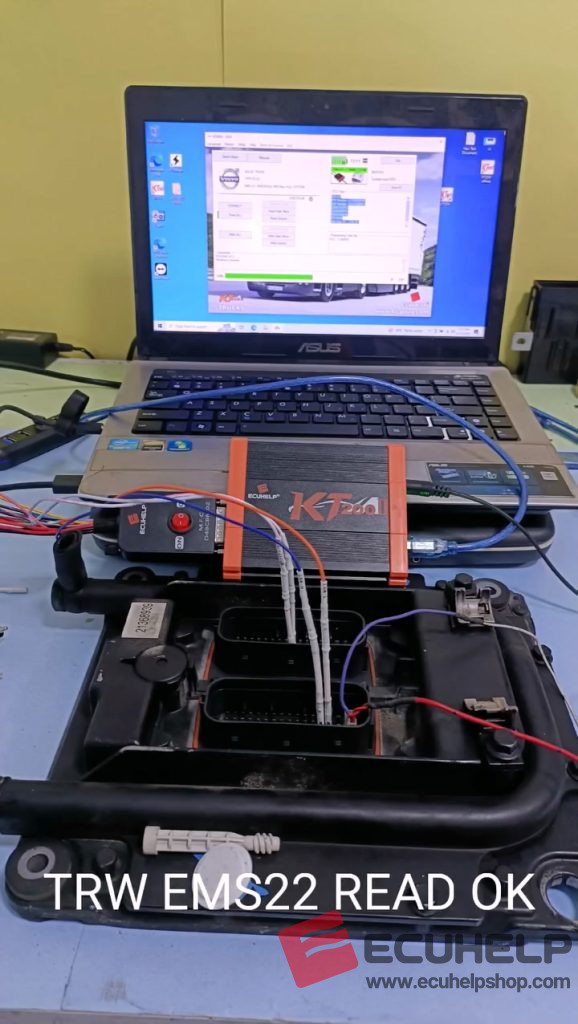

ECUHELP KT200ii is tested ok with TRW EMS 2.2

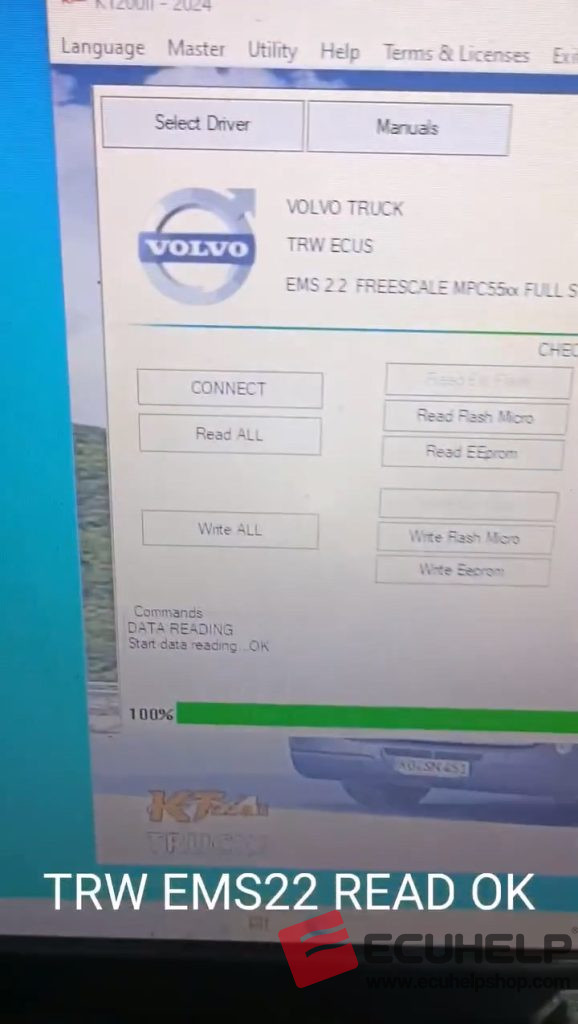

Read ok

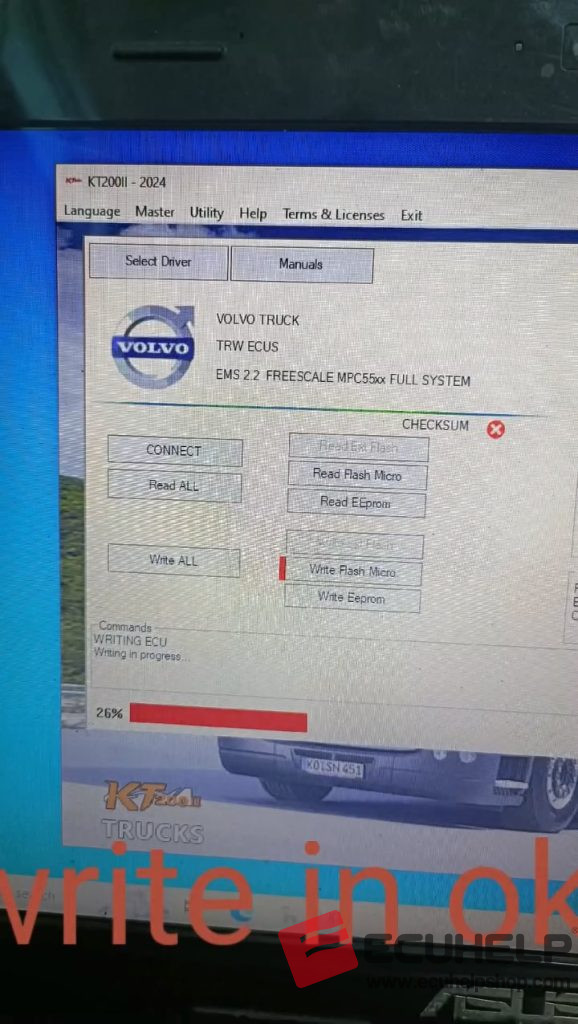

Write mod file: OK
Checksum by KT200: ok

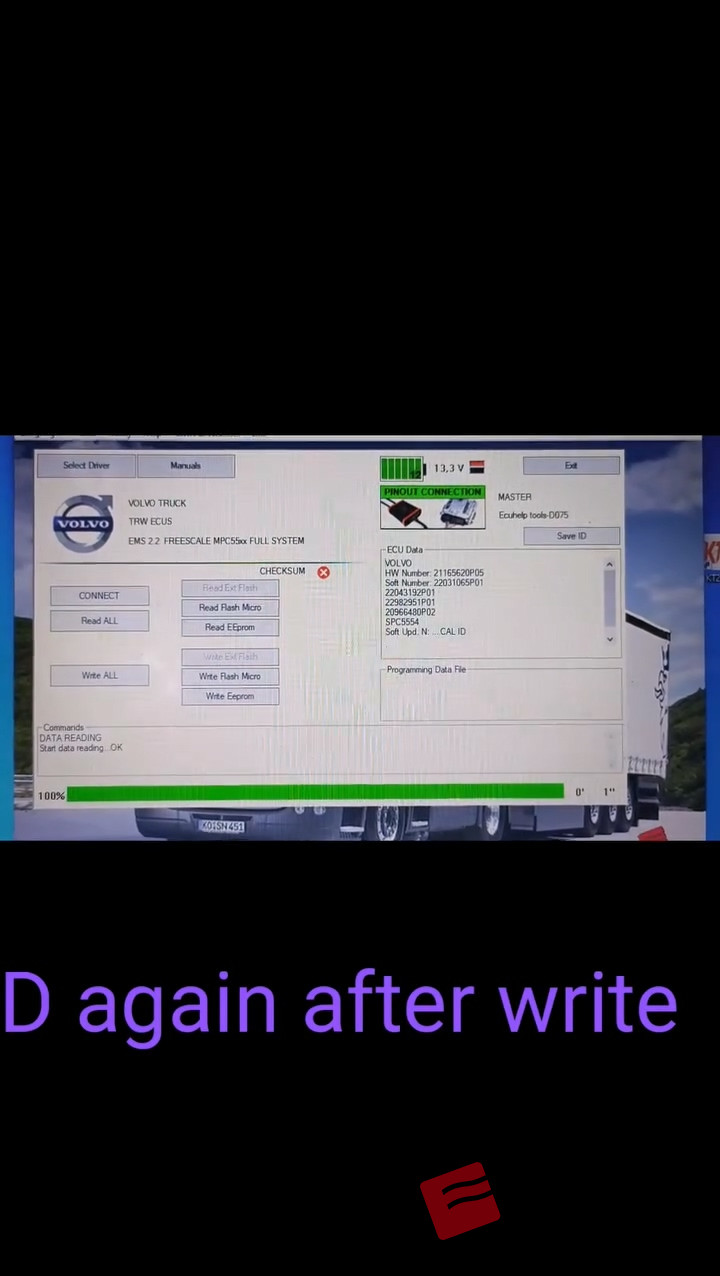

After writing test with ID again OK
Look at the following images which show the reading and writing results:
KT200II wiring diagram of MOTOROLA EMS2 Hardware 1 – MPC5554 – Volvo Truck, Renault Truck:
Kit to use:
– Multifunction cable
– Rainbow flat cable

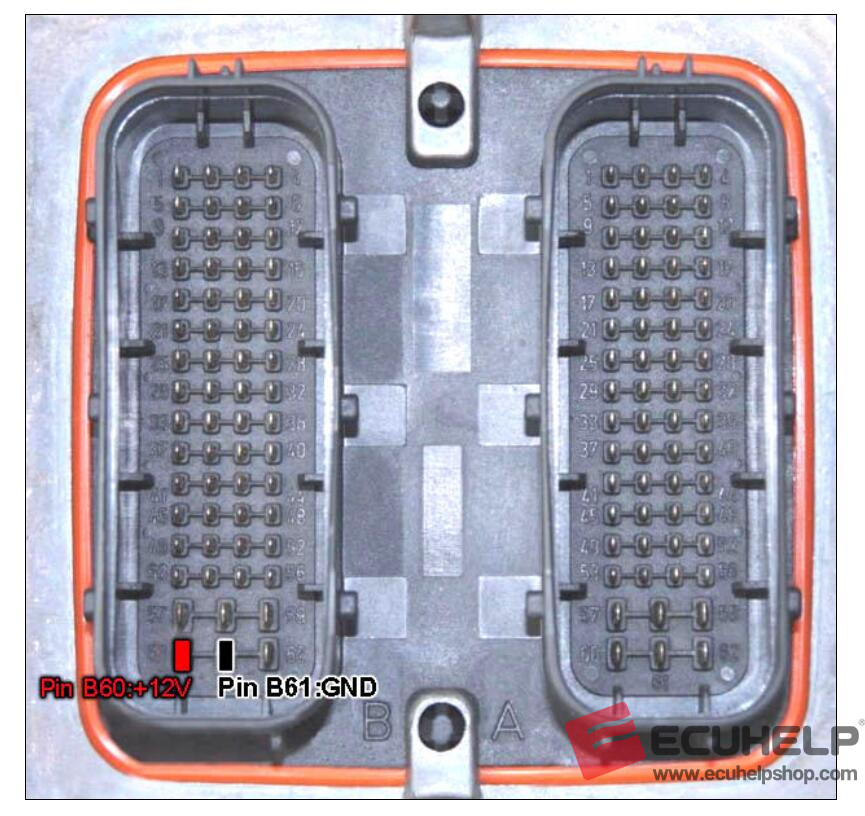

Connect the multifunction cable as follows:
ATTENTION: THIS ECU NEEDS A HIGH AMPERAGE. MAKE SURE YOUR POWER
SUPPLY SUPPORTS THE AMPERAGE NEEDED TO CORRECT COMUNICATION WITH THE ECU, OR USE A BATTERY.

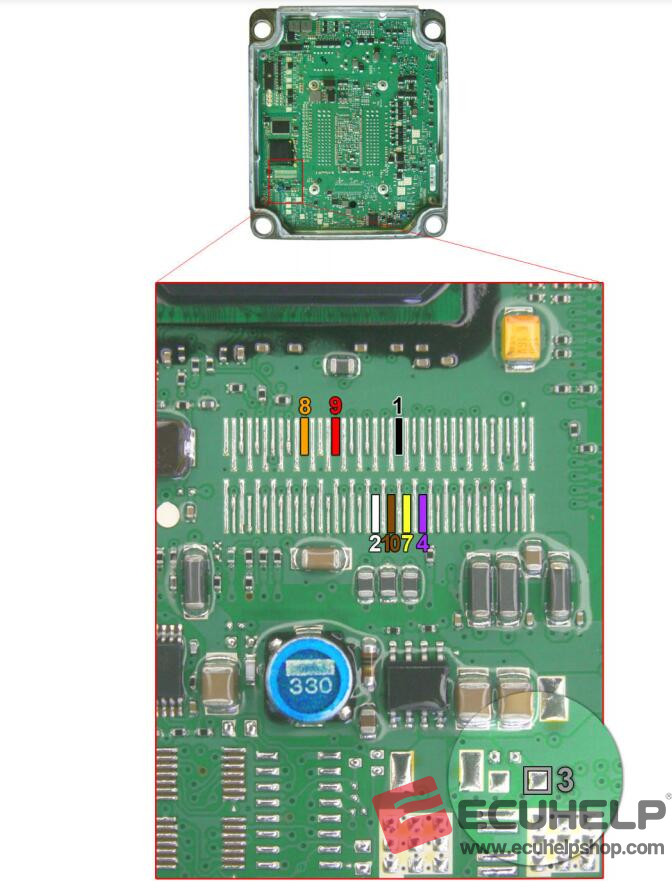

Solder the rainbow flat cable on the pcb:
Use KT200II to read and write use the following driver:
