ECUHELP KT200 is tested to read and write Ford Transit EDC17C70 Bench mode or boot mode or OBD mode.
1. OBD mode
Ford Transit courier EDC17C70 Read Write 100% OK via OBD.
2. Bench mode

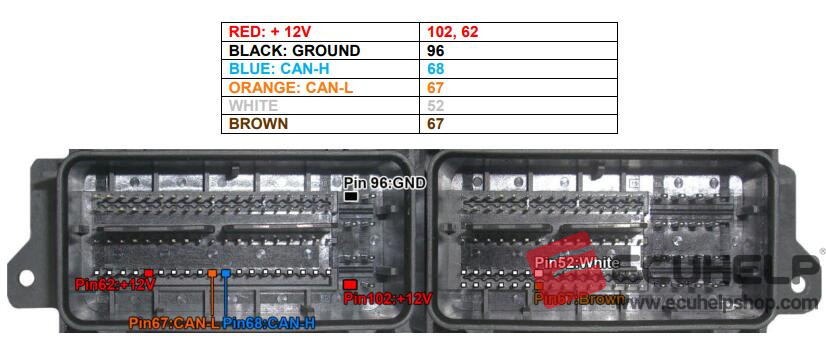

KT200 wiring diagram of BOSCH EDC17 C70 [ 1793 ] – Ford [Diesel]
Connect the multifunction cable as follows:
To read and write use the following driver:
→ BENCH TRICORE
→ FORD
→ TC1793 – FORD
→ EDC17 C70
Related article:
KT200 R/W Bosch EDC17C70 Ford Curuyer 2022
3. Boot mode
KT200 Wiring diagram of BOSCH EDC17C70 [ TC1793 INT.F.] – Ford
Kit to use:
– Multifunction cable
PASSWORD SEARCH
Connect the pinout below with multifunction cable.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Tool Password
→ OBD PASSWORD TPROT V13 FORD EDC17
→ Click on “Find Password” and follow the software messages.
Now that the password has been found it’s possible to read and write the control unit with KT200.
READ AND WRITE ECU
Connect with the multifunction cable the following pinout and the boot shown below.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1793
To connect to the sixth pin of the micro, we recommend the use of a Hook tweezer:
