Question: ECUHELP KT200 for ecu sid803 psa, read id ok, read flash not work, full system mode.

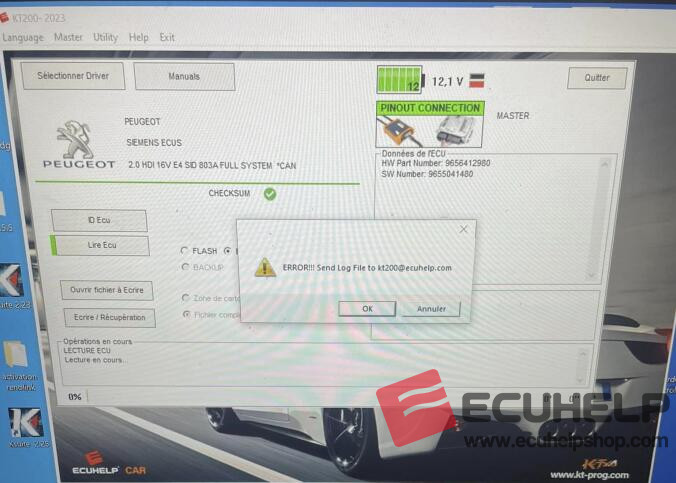

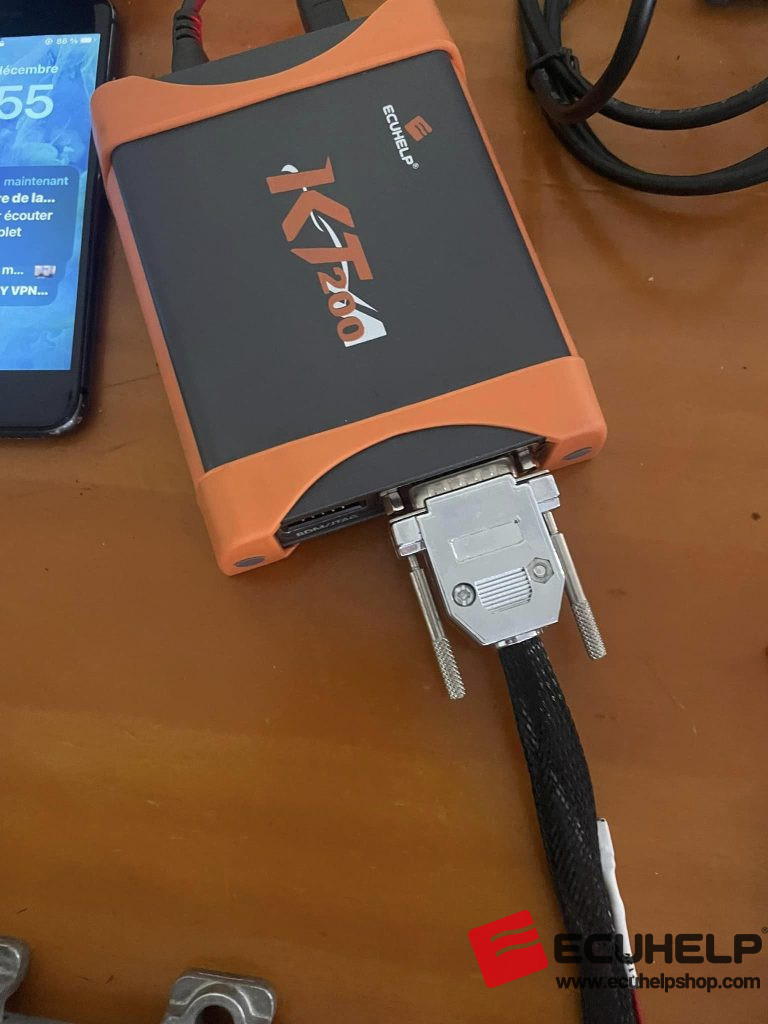

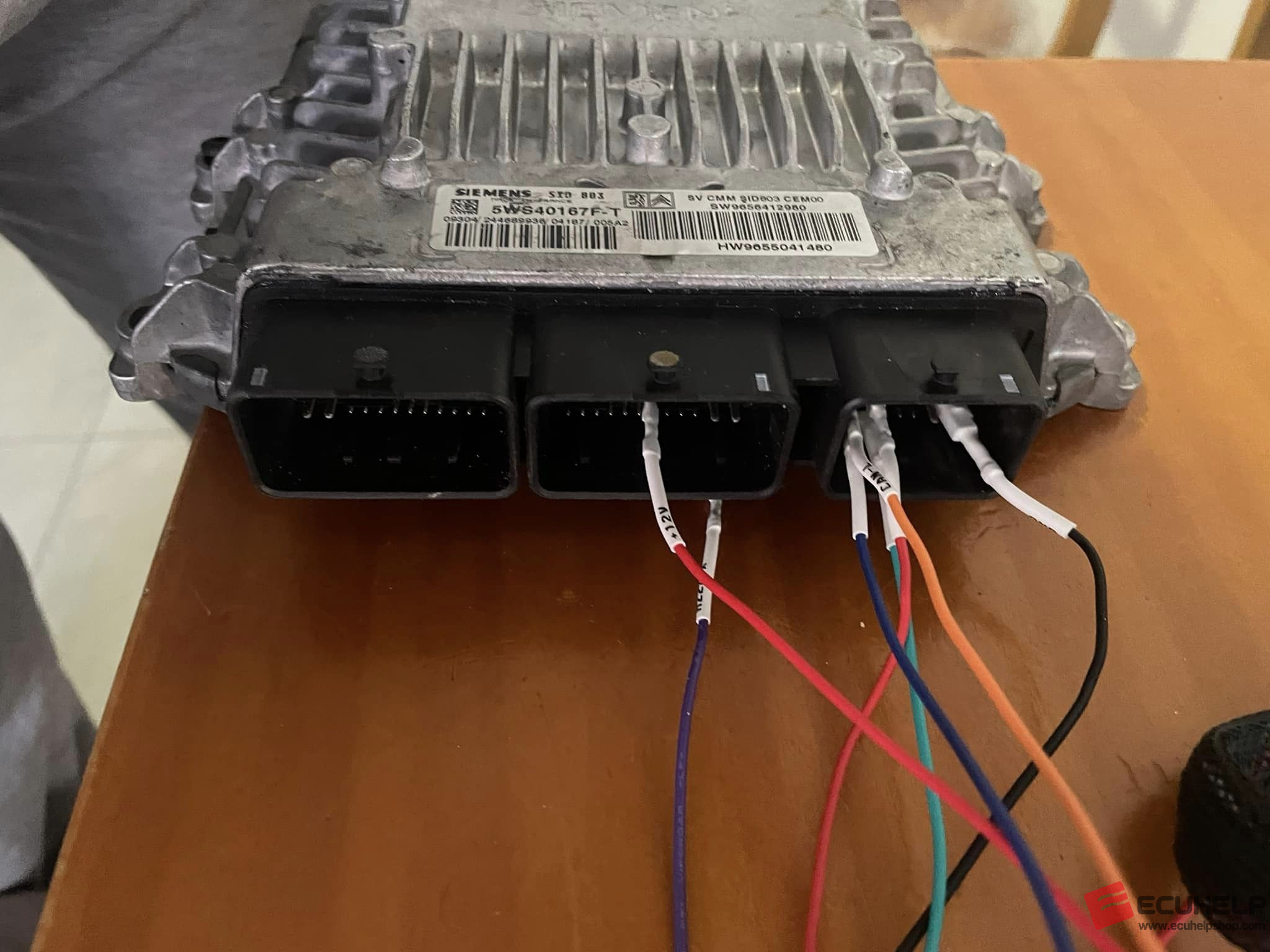

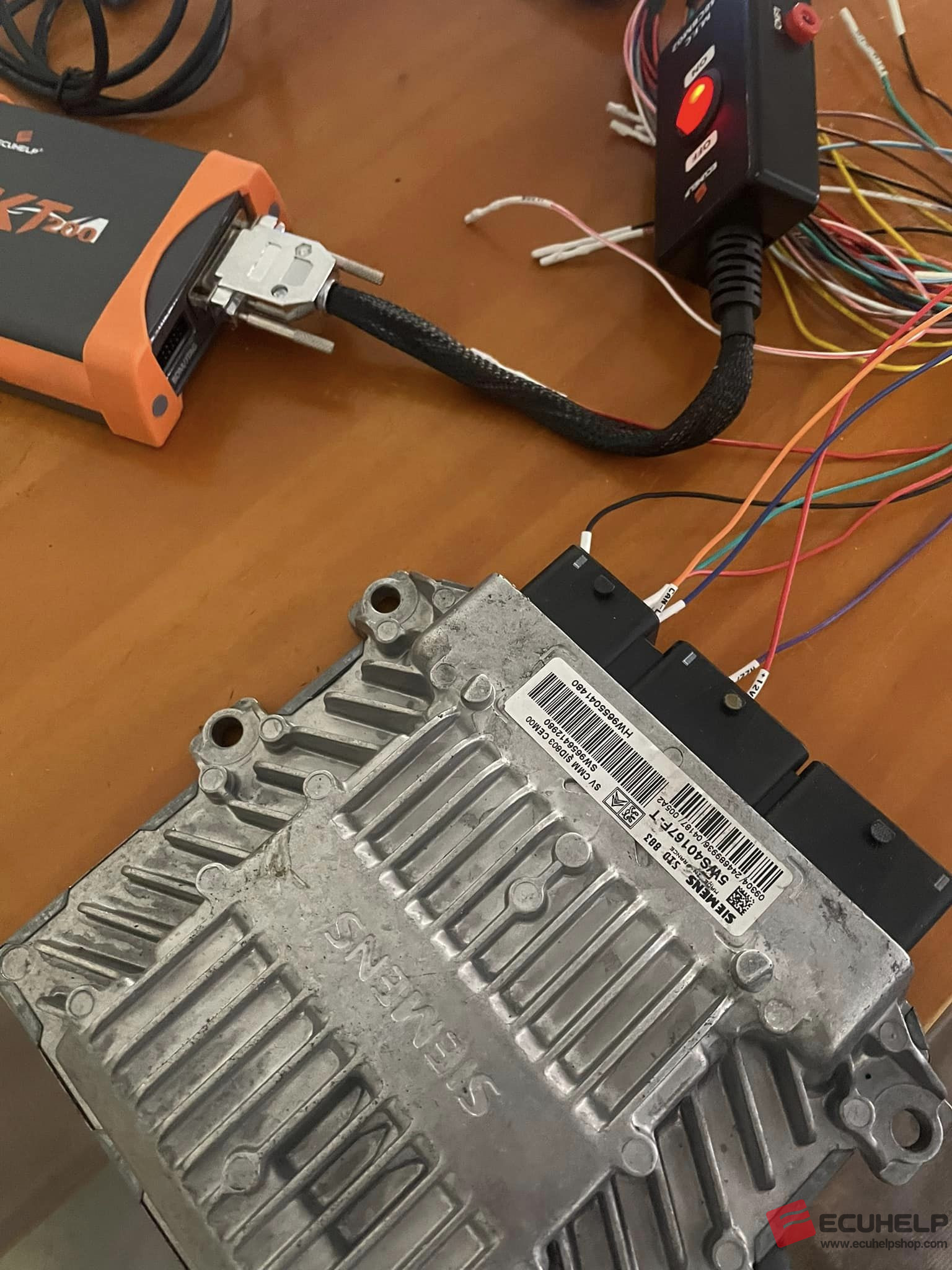

Attach 4 images which include the error pop-up, the ECU outlook, and the connection:
Possible reason and solution:
Because you chose wrong ecu, your ECU is sid803 and you selected sid803A.
And KT200 read and write SID803 BDM mode.
KT200 wiring diagram of Siemens SID803
Kit to use:
– Multifunction cable
– Siemens/Marelli adapter
– Grey flat cable
– Connectors dip/sip

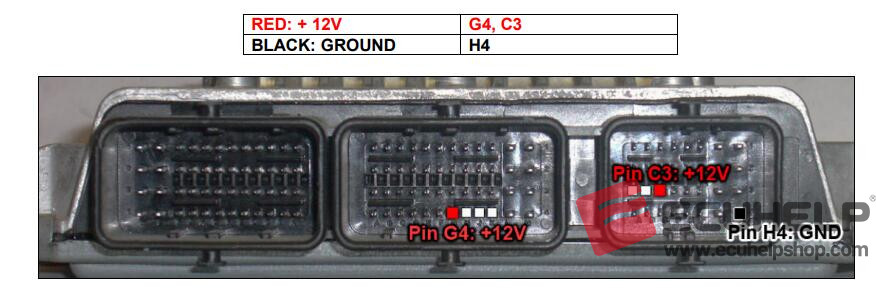

Connect multifunction cable as follows:

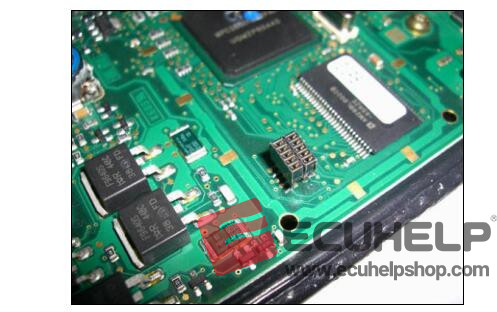

Solder the dip/sip connectors on the pcb:

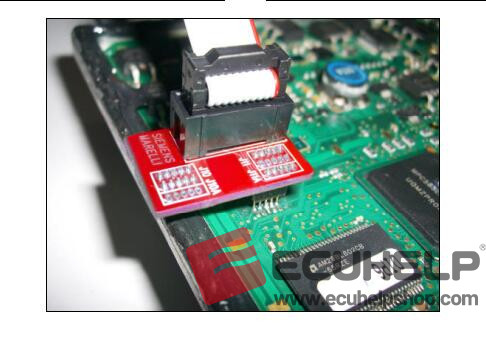

Insert Siemens/Marelli adapter as in photo:
KT200 read and write use the following driver:
→ BDM/ JTAG MODE
→ BDM MPC
→ MPC55x/56x
Following these detailed instructions should resolve the reading issue with the Siemens SID803 PSA ECU when using the KT200 in BDM mode.
