ECUHELP KT200II has been rigorously tested and proven effective for reading and writing the Renault Espace EDC16CP33 ECU in Bench Mode. This guide provides a comprehensive overview of the connection process and the tool’s capabilities.
To give you a clear understanding of the KT200II’s compatibility and efficiency with the EDC16CP33, we have included four images:

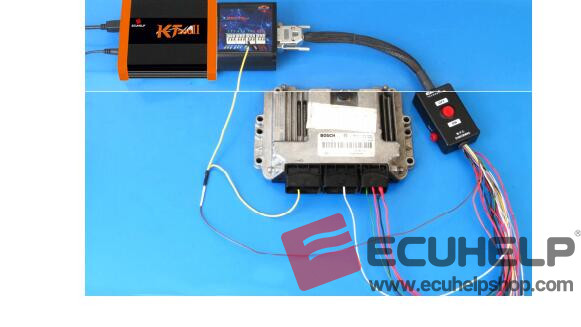

The first image shows the KT200II is connected to the ECU.

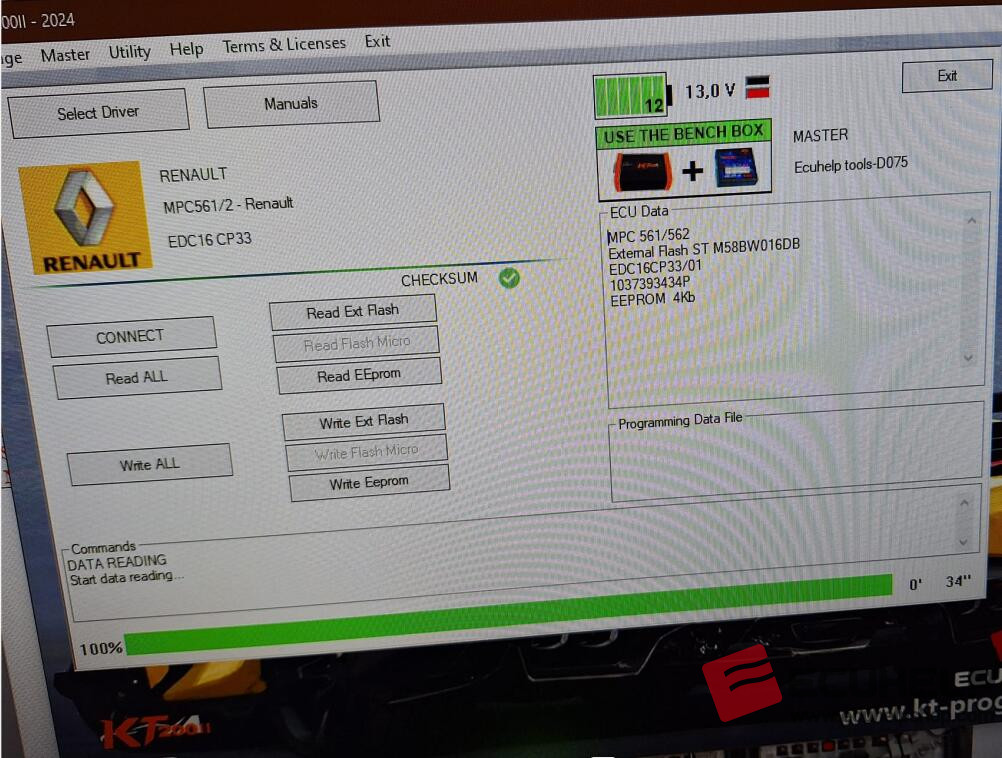

Two screenshot confirming a successful 100% reading.
An image displaying a complete 100% writing process.

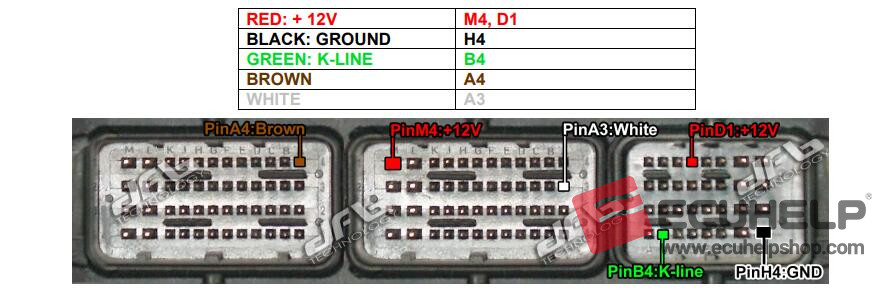

Followed with KT200II wiring diagram of EDC16CP33 on Bench:
BOSCH EDC16 CP33 [ MPC561/2 ] – Renault, Nissan [Diesel]
Connect the multifunction cable as follows, use the Bench Box:
ATTENTION:
IF THE ECU DOES NOT ENTER BENCH MODE, CONNECT AS FOLLOWS:
图6
Example of connection:
图7
KT200II read and write use the following driver:
→ BENCH MODE
→ [brand]
→ MPC561/2 – [brand]
→ EDC16 CP33
With these detailed instructions and visual aids, users of the KT200II can confidently manage the Renault Espace EDC16CP33 ECU Bench Mode.
