ECUHELP KT200II is confirmed to work with Mercedes Crd3 e1 ECU, it is capable of reading, writing and doing checksum.

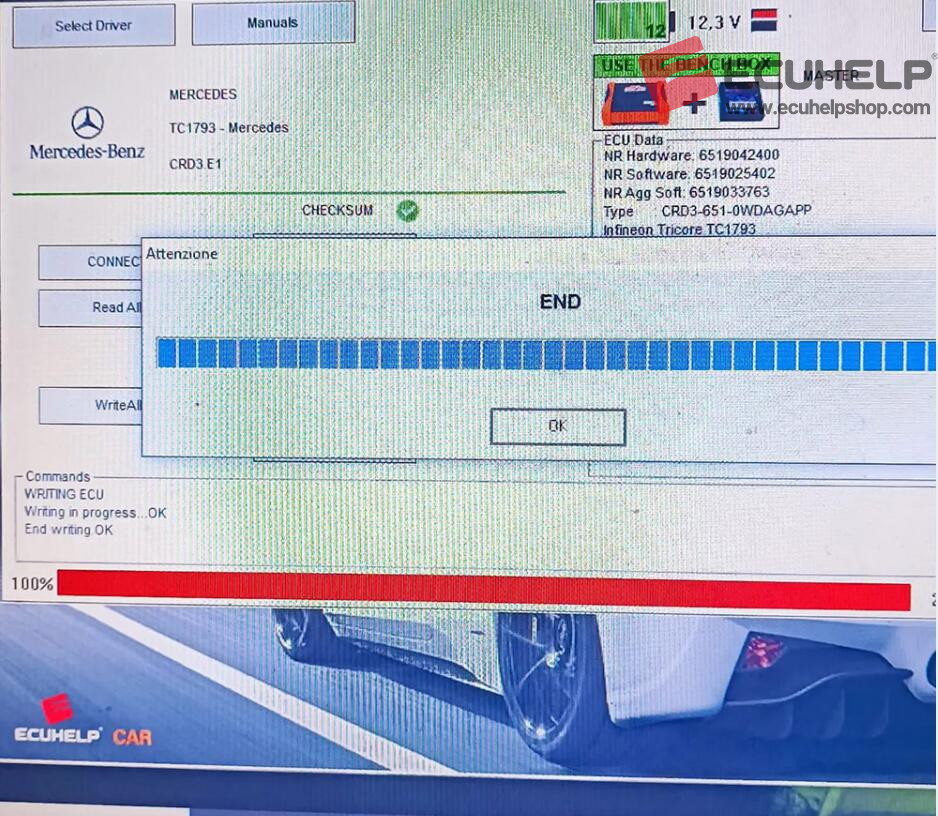

Look at this image of KT200II writing Mercedes Crd3 e1 successfully.

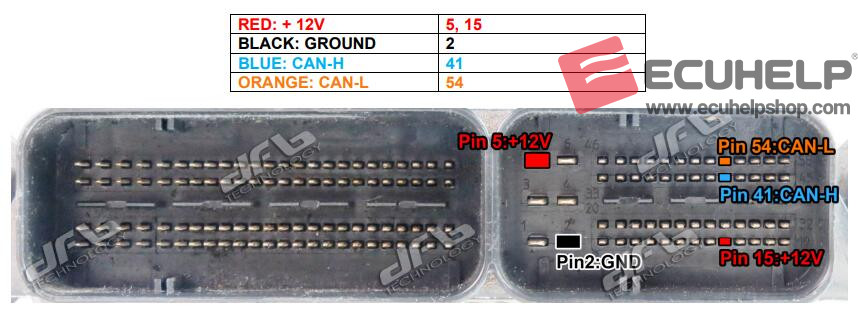

Maybe you are interested in the KT200II wiring diagram of DELPHI CRD3.E, CRD3.E1, CRD3.F1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0 – Solenoid [1793] Mercedes Benz [ Diesel ]:
Kit to use:
– Multifunction cable
– Bench Box v.2
Use KT200II to read and write use the following driver:
→ BENCH MODE
→ MERCEDES BENZ
→ TC1793 – MERCEDES
and choose between:
→ CRD3.E
→ CRD3.E1
→ CRD3.F1
→ CRD3P.B0
→ CRD3P.C0
→ CRD3P.D1
→ CRD3P.G0
