ECUHELP KT200II ECU Programmer has been successfully tested for reading and writing the EDC16C34 ECU in a 2010 Ford Focus 1.6TDCI Bench Mode. This guide provides a detailed overview of the process, complete with visual aids to demonstrate the steps involved.

Vehicle: Ford Focus 2010 1.6TDCI
ECU Model: EDC16C34
Operation Mode: Bench

Below are images demonstrating the connection setup and the read/write processes.

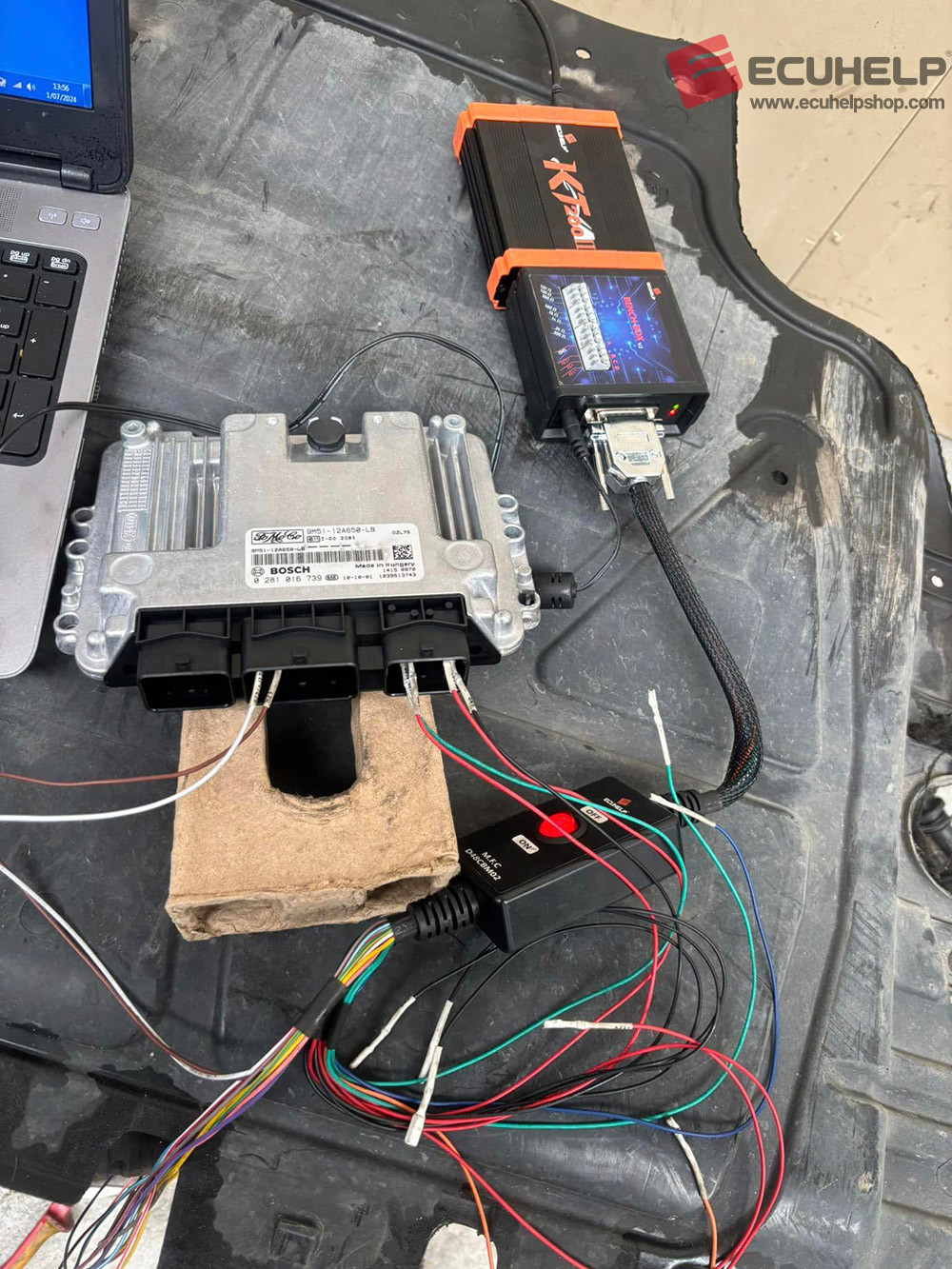

1. Connection Setup
Below is an image showing the connection among the KT200 II, the ECU, and the computer on Bench Mode:
KT200II Read and Write Ford Focus 2010 1.6TDCI EDC16C34 on Bench

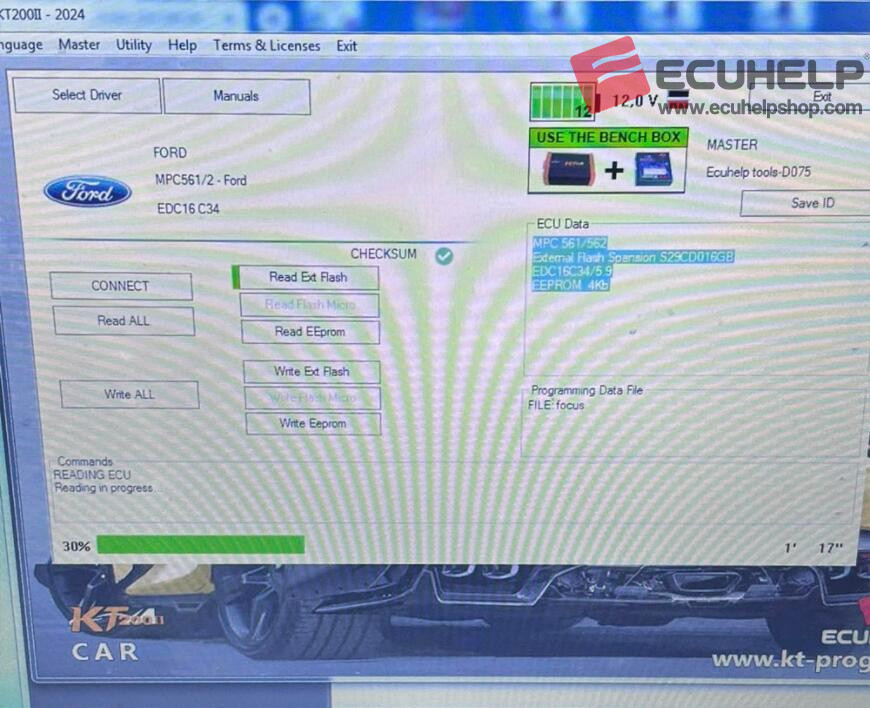

2. Reading the EDC16C34 ECU
KT200II Read Ford Focus 2010 1.6TDCI EDC16C34 on Bench

3. Writing to the EDC16C34 ECU
KT200II write Ford Focus 2010 1.6TDCI EDC16C34 on Bench

ECUHELP KT200II is an effective and reliable ECU Programmer for automotive professionals working with the EDC16C34 ECU in the 2010 Ford Focus 1.6TDCI. Its ability to perform precise read and write operations in Bench Mode ensures high efficiency and accuracy.
