The KT200 II ECU Programmer has been validated for reading and writing the BMW X3 Bosch EDC16C35 [MPC561/2] ECU iBench Mode.

ECU Programmer: KT200 II
Vehicle and ECU Model: BMW X3, Bosch EDC16C35 [MPC561/2]
Operation Mode: Bench Mode

Visual Documentation:

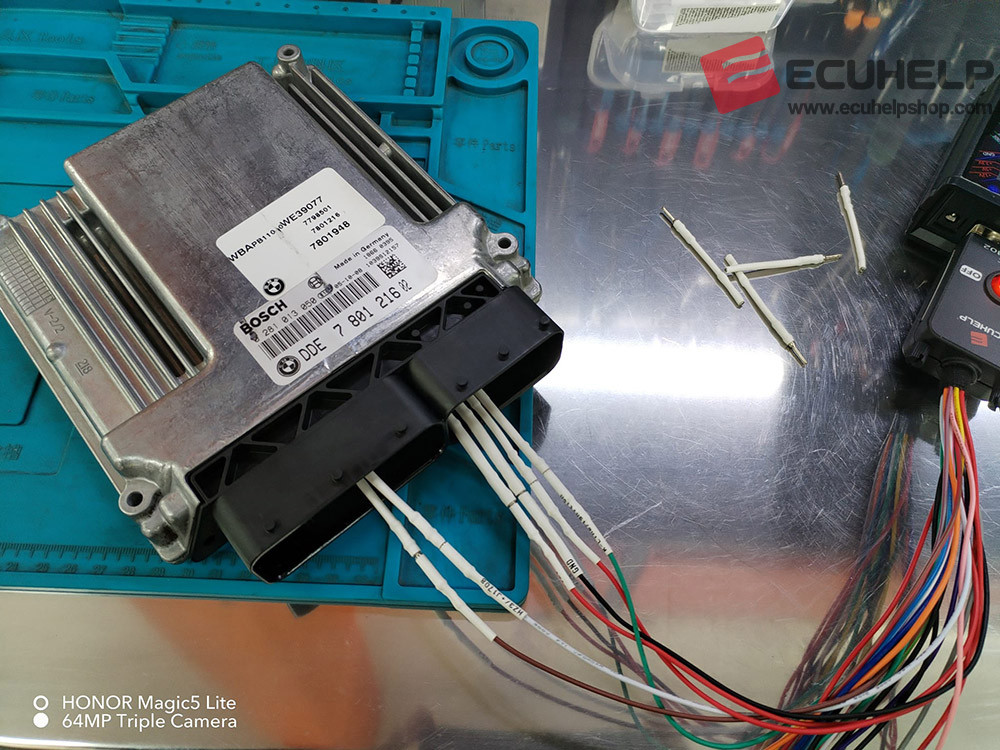

Image 1: Demonstrates how the KT200 II is connected to the Bosch EDC16C35 ECU on bench.
KT200 II Read Write BMW X3 Bosch EDC16C35 Bench Mode-01

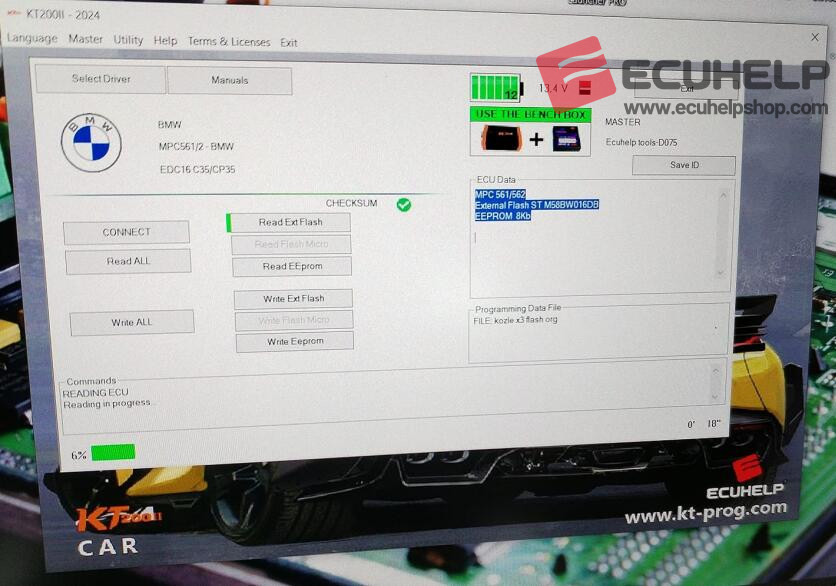

Image 2: Shows the KT200 II reading the Bosch EDC16C35 ECU until 100% completion.
KT200 II Read Write BMW X3 Bosch EDC16C35 Bench Mode-02

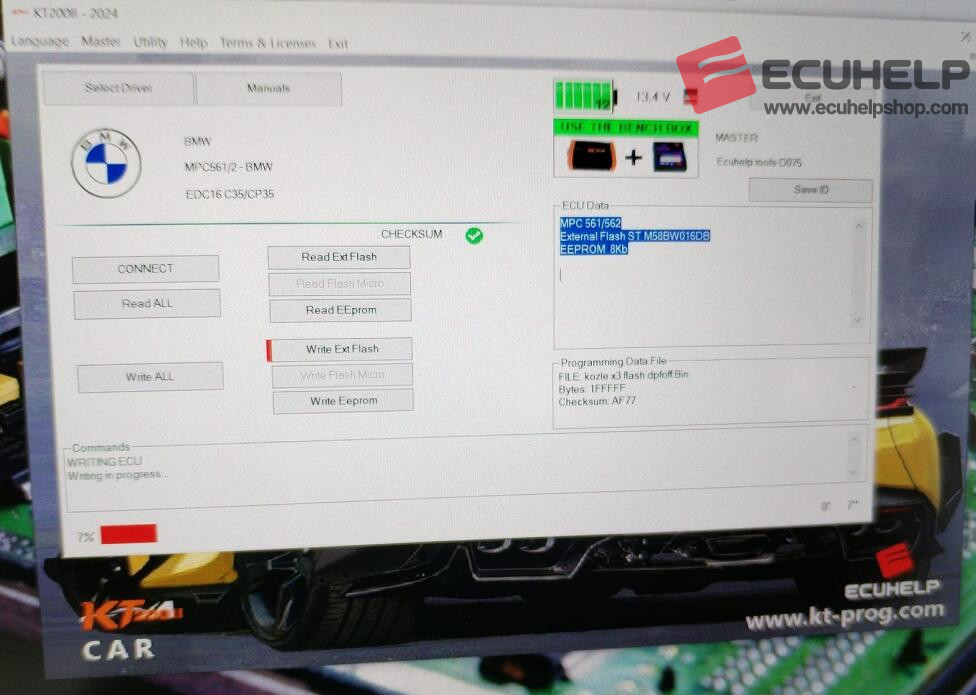

Image 3: Illustrates the KT200 II writing to the Bosch EDC16C35 ECU until 100% completion.
KT200 II Read Write BMW X3 Bosch EDC16C35 Bench Mode-03

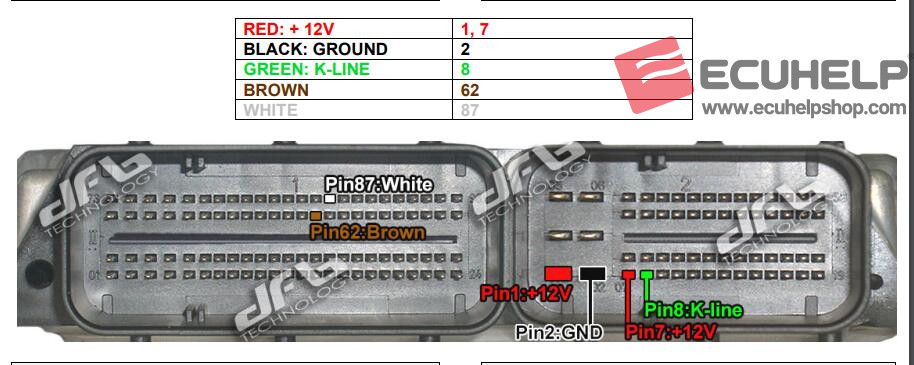

Wiring Diagram:
KT200 II Wiring Diagram: For BOSCH EDC16 C35/CP35 [MPC561/2] – BMW, Mini [Diesel]. Connect the multifunction cable using the Bench Box.
KT200 II Read Write BMW X3 Bosch EDC16C35 Bench Mode-04

To read and write use the following driver:
→ BENCH MODE
→ [brand]
→ MPC561/2 – [brand]
→ EDC16 C35 / CP35

Conclusion:
The KT200 II ECU Programmer proves to be a reliable tool for handling the BMW X3 Bosch EDC16C35 ECU Bench Mode. By providing detailed visual aids and specific driver configurations, it ensures accurate and efficient read and write operations.
