ECUHELP KT200 II ECU Programmer is tested to read and write Me 17.3.0 fiat bench mode.

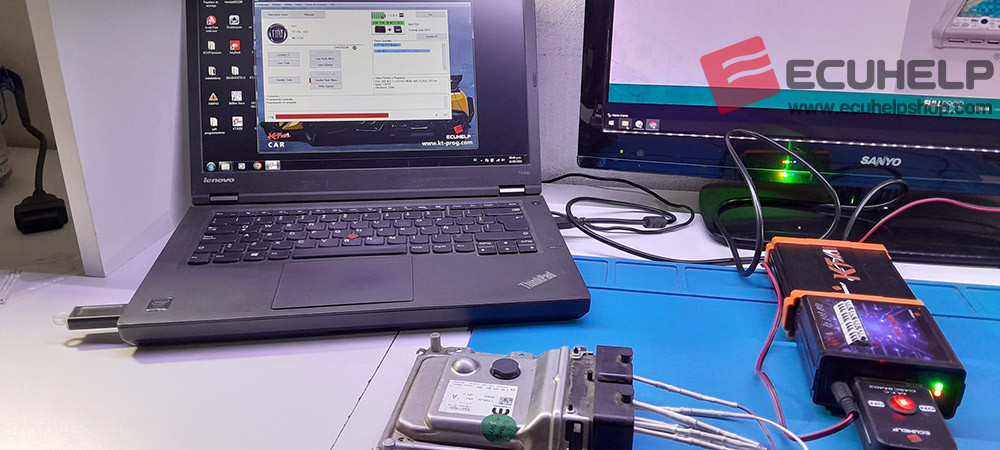

Look at the following images which show how does the KT200 II is connected to the ECU and the reading & writing process.

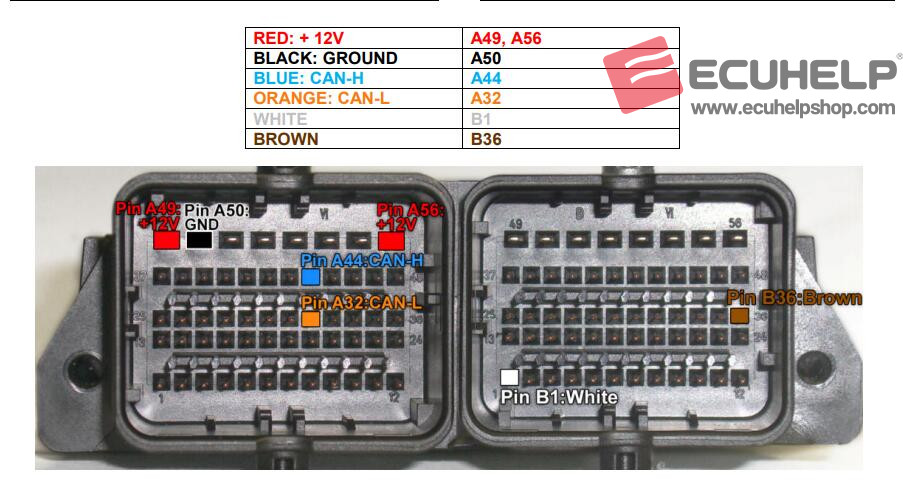

KT200 II wiring diagram of BOSCH ME17.3.0 [ 1724 ] – Fiat, Alfa Romeo, Lancia, Abarth [Gasoline]
Connect the multifunction cable as follows:
KT200 II read and write use the following driver:
→ BENCH TRICORE
→ FIAT / ALFA / LANCIA
→ TC1724 – FCA
→ ME17.3.0
ATTENTION:

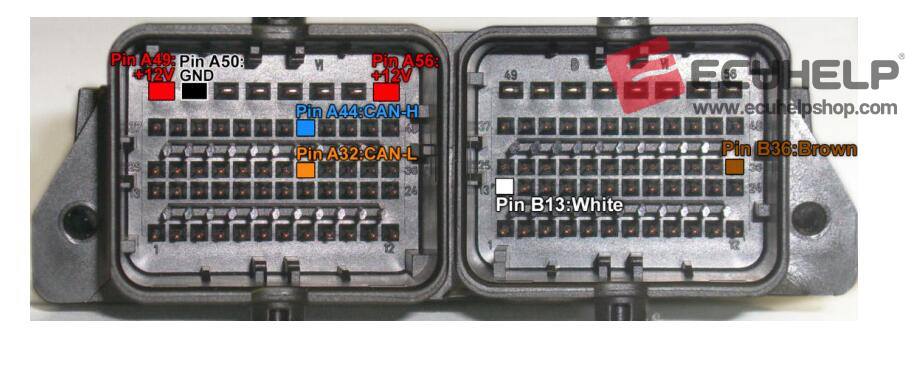

Some ME17.3.0 enter in Bench mode with the white wire on pins B13. If with the previous pinout doesn’t enter in bench tricore mode, then try again by connecting it as follows:
