ecuhelp kt200 ECU programmer is tested and able to read and write PSA Edc17c60 ok, checksum ok.
Bench Mode:
KT200 read and write PSA Edc17c60 ok on Bench.
Image 1: PSA Edc17c60 ECU

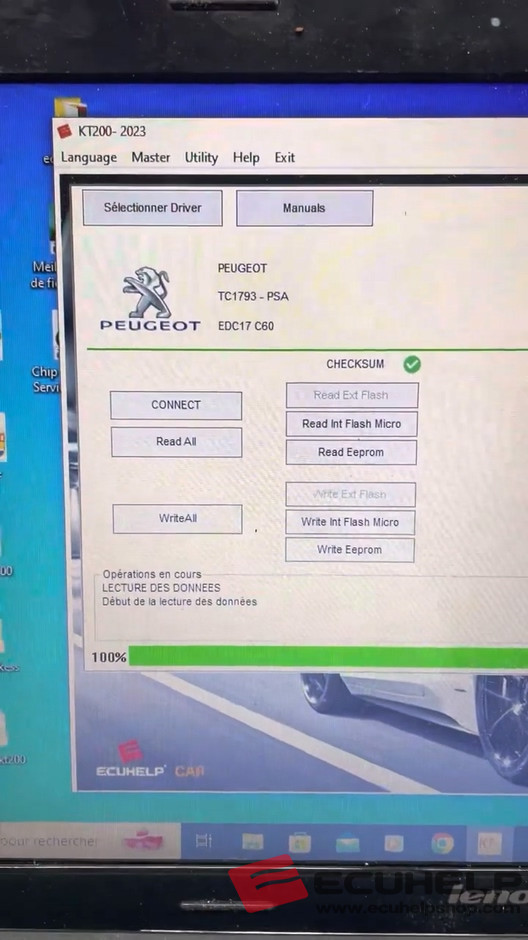

Image 2-5: KT200 read and write PSA Edc17c60 perfectly.

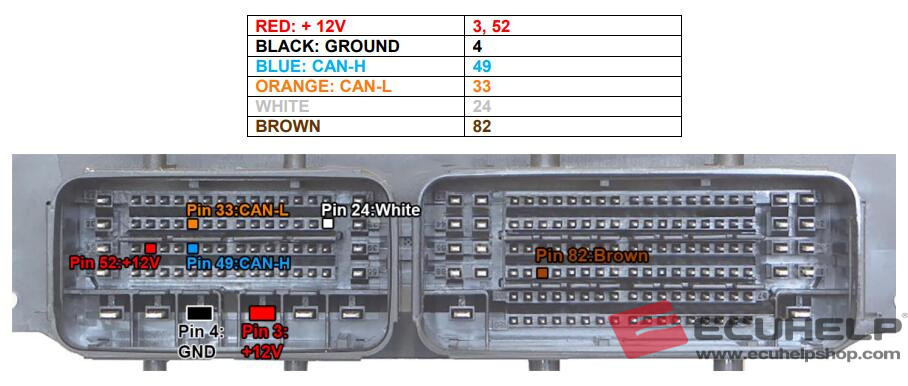

KT200 Edc17c60 on Bench Pinout
Connect the multifunction cable as follows:
KT200 read and write Edc17c60 using the following driver:
→ BENCH TRICORE
→ PEUGEOT / CITROEN
→ TC1793 – PSA
→ EDC17 C60
