BDM pads or rainbow cables have been commonly used for full Read/Write operations on Denso units. However, users frequently encounter issues with these methods, often due to electromagnetic interference from subpar wires and excessively lengthy cables. Thankfully, there is a solution that has emerged after hours of troubleshooting.
The primary challenge lies in the electromagnetic interference affecting these low-quality wires. Moreover, the cables can sometimes be overly long, leading to operational hiccups. Denso units, being housed in aluminum holders, offer a potential solution as aluminum can function as a shield against interference. By connecting this aluminum holder to the common ground of programming tools such as KT200, TagFlash, and others, a robust solution emerges.
This technique guarantees a seamless reading or writing experience for any Denso unit, eliminating the occurrence of errors. It is advised to maintain a power supply of 14V for optimal performance. Additionally, to mitigate interference, a rainbow cable with a maximum length of 15cm is recommended.
Here is a list of the Denso units that can benefit from this method:
*Denso NEC76F0038AGD 175822-762 Toyota
Denso NEC76F0038AGD 175822-773X Toyota
*Denso NEC76F0038AGD 175822-887 Toyota
*Denso NEC76F0038AGD 211941-37900830 Toyota
*Denso NEC76F0038AGD 211941-37910830 Toyota
*Denso NEC76F0038AGD 275036-1152 Toyota
*Denso NEC76F0038AGD 275036-2110 Toyota
*Denso NEC76F0038AGD 275036-2440 Toyota
*Denso NEC76F0038AGD 275036-2540 Toyota
*Denso NEC76F0038AGD 275036-3160 Toyota
*Denso NEC76F0038AGD 275036-4520 Toyota
*Denso NEC76F0038AGD 275036-4820 Toyota
*Denso NEC76F0038AGD 275036-9160 Toyota
*Denso NEC76F0038AGD 275136-1610 Toyota
Denso NEC76F0038AGD 275136-2010 Toyota
*Denso NEC76F0038GD 175822-737 Toyota
*Denso NEC76F0038GD 175822-762 Toyota
Denso NEC76F0038GD 175822-773 Toyota
*Denso NEC76F0038GD 275036-0080 Toyota
*Denso NEC76F0038GD 275036-0360 Toyota
*Denso NEC76F0038GD 275036-1152 Toyota
*Denso NEC76F0038GD 275036-1470 Toyota
Denso NEC76F0038GD 275036-2880 Toyota
Denso NEC76F0038GD 275036-7461 Toyota
Denso NEC76F0038GD 275036-8730 Toyota
Denso NEC76F0038GD 275036-9540 Toyota
Denso NEC76F0038GD 275236-0011 Toyota
Denso NEC76F0039AGD 175822-762 Toyota
Denso NEC76F0039AGD 175822-773 Toyota
Denso NEC76F0039AGD 175822-799 Hino
Denso NEC76F0039AGD 175822-887 Toyota
Denso NEC76F0039AGD 211941-37000930 Toyota
Denso NEC76F0039AGD 211941-46000930 Toyota
Denso NEC76F0039AGD 275036-1152 Fujitsu Toyota
Denso NEC76F0039AGD 275036-3740 Toyota
Denso NEC76F0039AGD 275036-9050 Toyota
Denso NEC76F0039AGD 275036-9170 Toyota
Denso NEC76F0039AGD 275136-1910 Toyota
Denso NEC76F0039GD 175822-737 Toyota
Denso NEC76F0039GD 175822-762 Toyota
*Denso NEC76F0039GD 175822-773 Toyota
Denso NEC76F0039GD 175822-887 Toyota
Denso NEC76F0039GD 275036-1150 Toyota
Denso NEC76F0039GD 275036-1152 Toyota
Denso NEC76F0039GD 275036-6941 Toyota
Denso NEC76F0039GD 275036-7780 Toyota
Denso NEC76F0039GD 275036-9160 Toyota
Denso NEC76F0040AGD 175822-652 Hino
Denso NEC76F0040AGD 175822-887 Toyota
Denso NEC76F0040AGD 211841-3581A830 Toyota
Denso NEC76F0040AGD 275036-9170 Toyota
Denso NEC76F0040AGD 275922-856 Toyota
Denso NEC76F0040GD 175822-666 Toyota
Denso NEC76F0040GD 175822-887 Toyota
Denso NEC76F0040GD 275036 6941 Toyota
Denso NEC76F0040GD 275036-2050 Toyota
Denso NEC76F0040GD 275036-7341 Toyota
Denso NEC76F0040GD 275036-7780 Toyota
Denso NEC76F0040GD 275036-9170 Toyota
Denso NEC76F0070 275036-3410 Toyota
Denso NEC76F0070 275036-3560 Toyota
Denso NEC76F0070 275036-5130 Toyota
*Denso NEC76F0070 275036-5920 Toyota
Denso NEC76F0070 275922-001 Toyota
Denso NEC76F0070 275992-428 Toyota
Denso NEC76F0070 276122-092 Toyota
Denso NEC76F0085 211941-45800932 Toyota
Denso NEC76F0085 275036-5280 Toyota
Denso NEC76F0085 275036-5650 Toyota
Denso NEC76F0085 275036-5810 Toyota
Denso NEC76F0085 275036-6110 Toyota
Denso NEC76F0085 275036-7400 Toyota
Denso NEC76F0085 275036-7581 Toyota
Denso NEC76F0085 275922-022 Toyota
Denso NEC76F0085 275922-320 Toyota
Denso NEC76F0085 275922-473 Toyota
Denso NEC76F0085 275922-500 Toyota
Denso NEC76F0085 275922-532 Toyota
Denso NEC76F0085 275922-828 Toyota

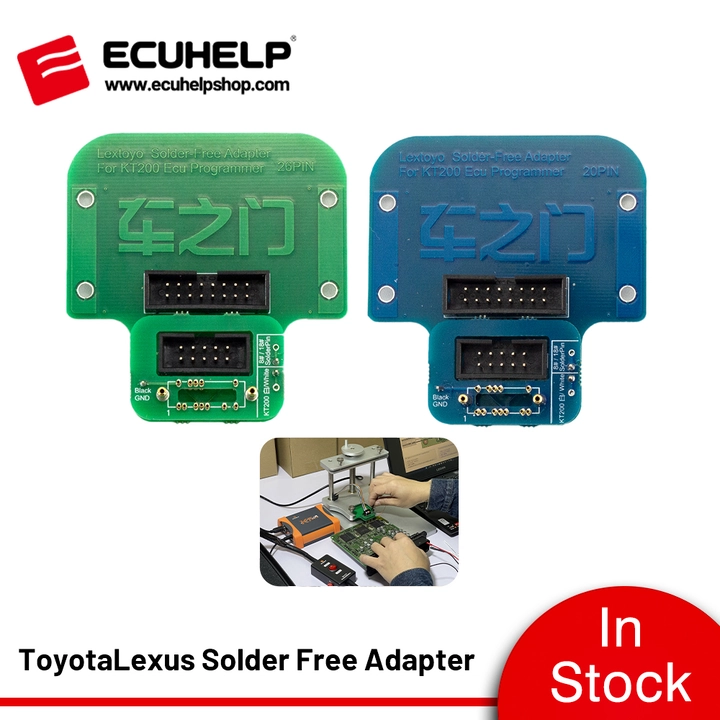

BTY, use the Toyota Denso BDM Adapter with KT200 /TagFlash for a more convenient process.
