KT200II has been thoroughly tested and proved its excellence with the Renault Space IV 2.0DCI150 EDC16CP33, read & write on Bench OK – 1 minute job done, CHECKSUM with Winols.

Connecting your KT200II to the bench box and the ECU box is straightforward.

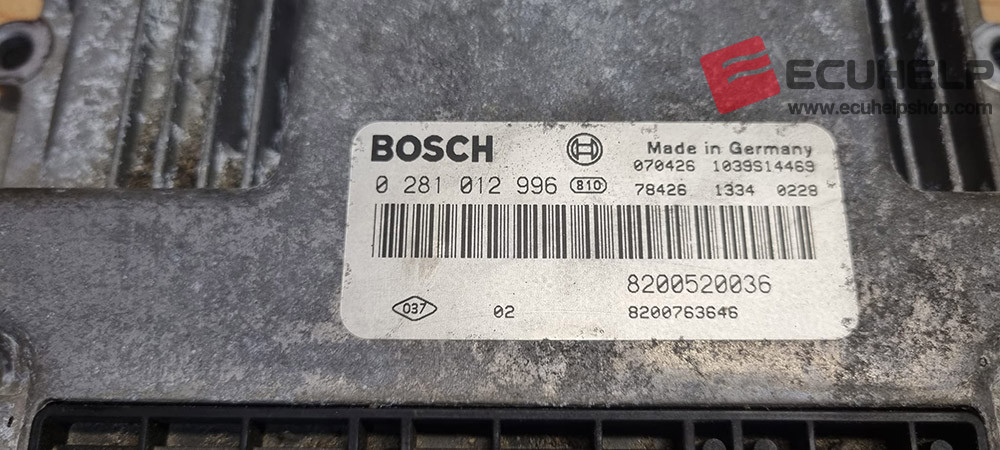

Take a moment to examine the ECU closely.

The read and write process is not only fast but also highly reliable, with a 100% success rate.

KT200II Wiring diagram of BOSCH EDC16 CP33 [ MPC561/2 ] – Renault, Nissan [Diesel]
Connect the multifunction cable as follows, use the Bench Box:

ATTENTION:
IF THE ECU DOES NOT ENTER BENCH MODE, CONNECT AS FOLLOWS:

KT200II read and write use the following driver:
→ BENCH MODE
→ [brand]
→ MPC561/2 – [brand]
→ EDC16 CP33

KT200II Wiring diagram of BOSCH EDC16 CP33 [ MPC563/4 ] – Renault, Nissan [Diesel]
Connect the multifunction cable as follows, use the Bench Box:

ATTENTION:
IF THE ECU DOES NOT ENTER BENCH MODE,CONNECT AS FOLLOWS:

KT200II read and write use the following driver:
→ BENCH MODE
→ [brand]
→ MPC561/2 – [brand]
→ EDC16 CP33

With this guide, using the KT200II for your Renault EDC16CP33 becomes a walk in the park. Whether you’re a professional mechanic or a car enthusiast, these steps will ensure a smooth and effective operation!
