Overview
ECUHELP KT200II ECU Programmer has been successfully tested for reading and writing the BMW Mini F55 B38 MEVD17.2.3 TC1793 on bench.
Demonstration

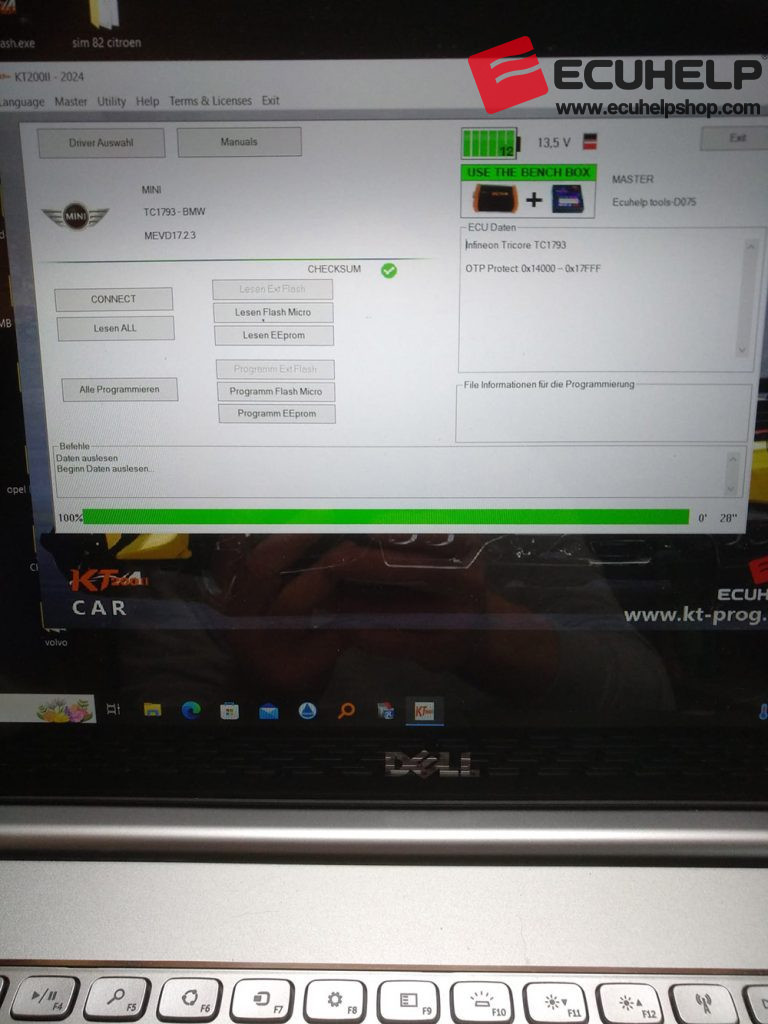

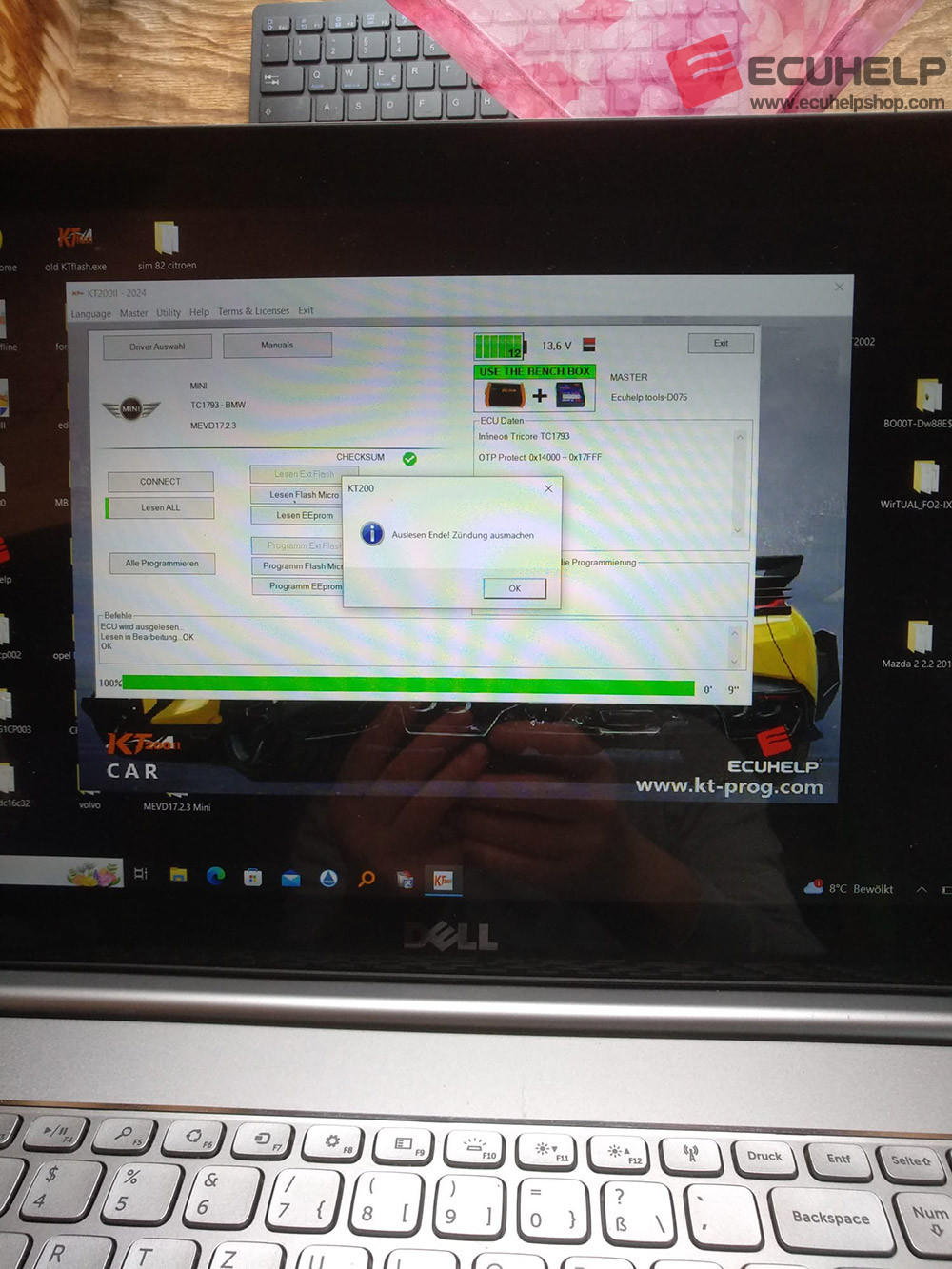

Images 1 – 2: Show KT200II successfully reading the MEVD17.2.3 on bench with 100% accuracy.
Wiring Diagram

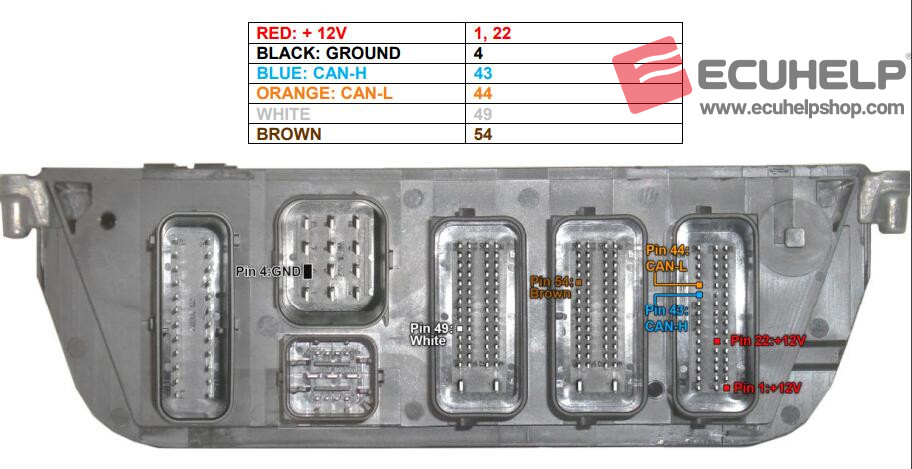

KT200II Wiring Diagram for BOSCH MEVD17.2.3 [1793] – BMW, Mini [Gasoline]:

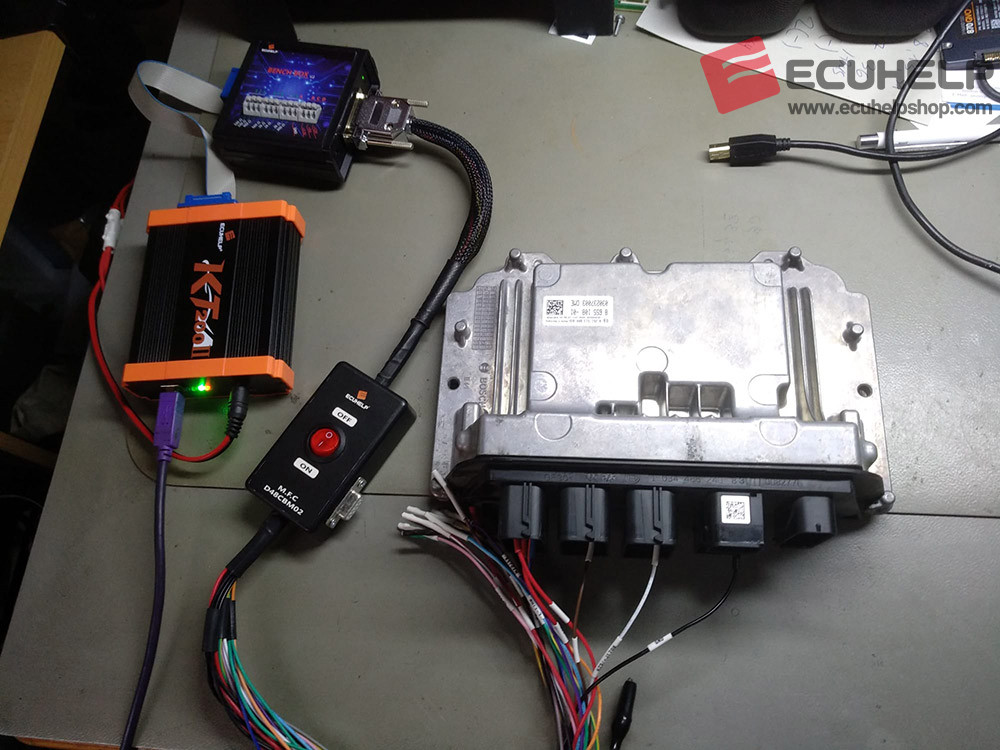

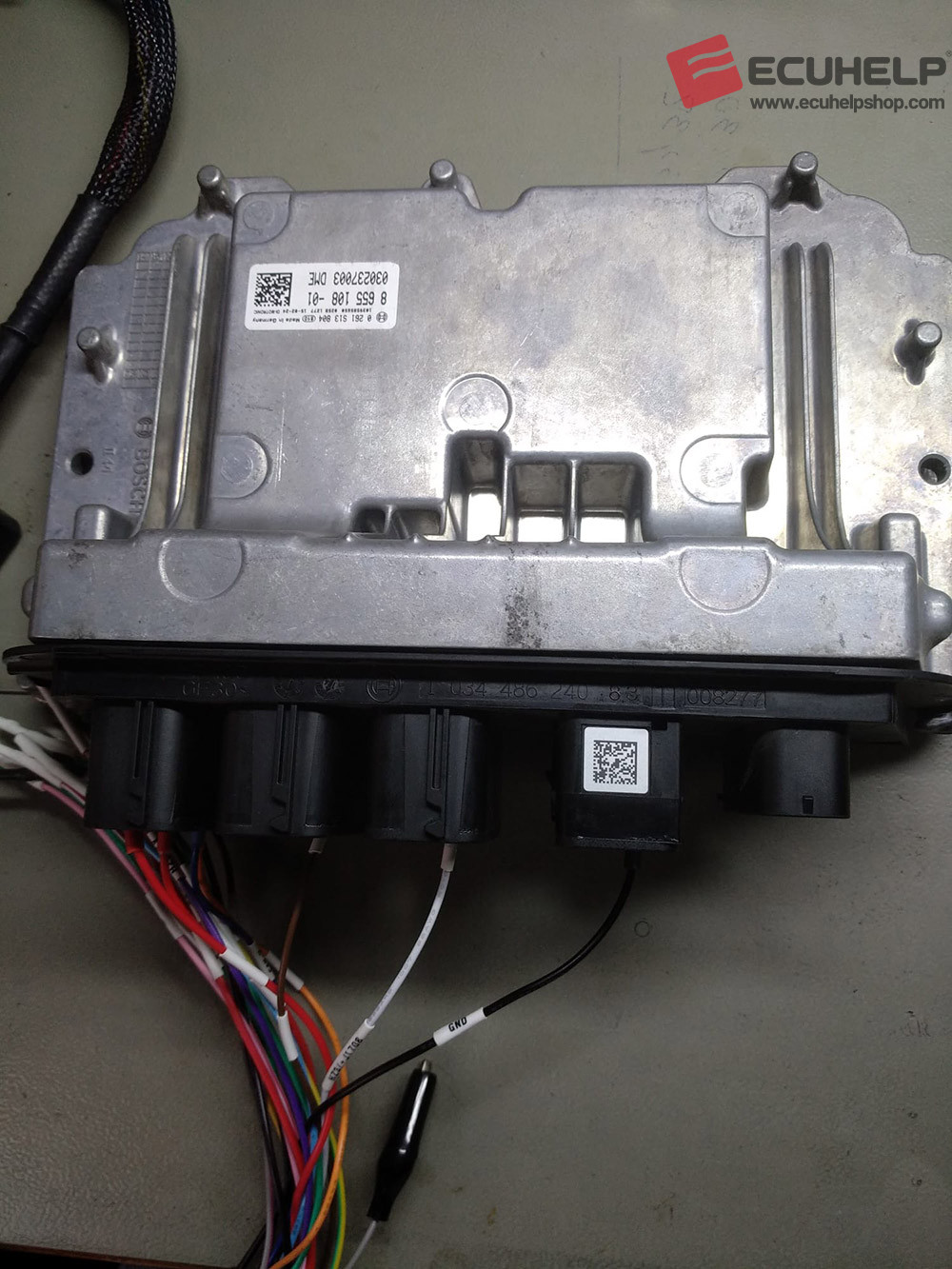

Connect the multifunction cable as illustrated in images 3, 4, and 5.
Driver Information
To read and write, use the following driver settings:
→ BENCH TRICORE
→ BMW
→ TC1793 – BMW
→ MEVD17.2.3
Conclusion
KT200II has proven to be a reliable ECU Programmer for bench reading and writing the BMW Mini MEVD17.2.3 TC1793 ECU, ensuring a smooth and efficient process for professionals working with these vehicle systems.
