In the evolving world of automotive technology, the ability to optimize a vehicle’s electronic control unit (ECU) stands as a pinnacle of enhancing performance, efficiency, and overall driving experience. ECUHelp KT200II emerges as a formidable tool in this domain, especially proven for its competency with the Opel Crossland 1.5D MD1CS003 2020 model. This guide walks you through the process of reading and writing to the ECU using the KT200II on a bench setup, a method that guarantees precision and safety.

Connecting the KT200II to the ECU on Bench

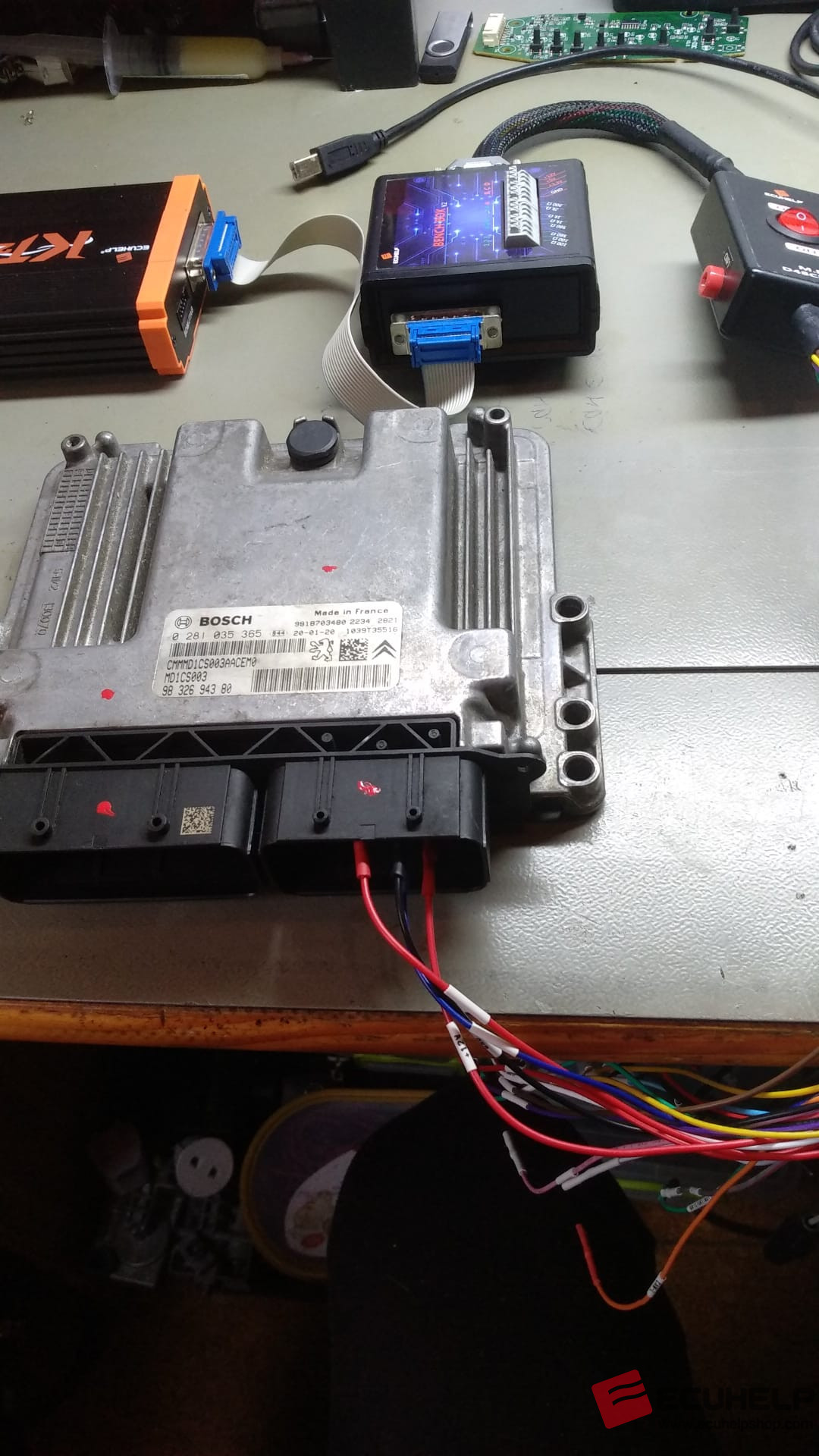

The initial step involves setting up your KT200II interface to connect with the ECU. A visual guide, as seen in the first accompanying image, delineates the connection process, ensuring you have a clear understanding of the setup before proceeding.

KT200II bench read write Opel Crossland 1.5D MD1CS003 2020-01

Successful Read and Write Operations

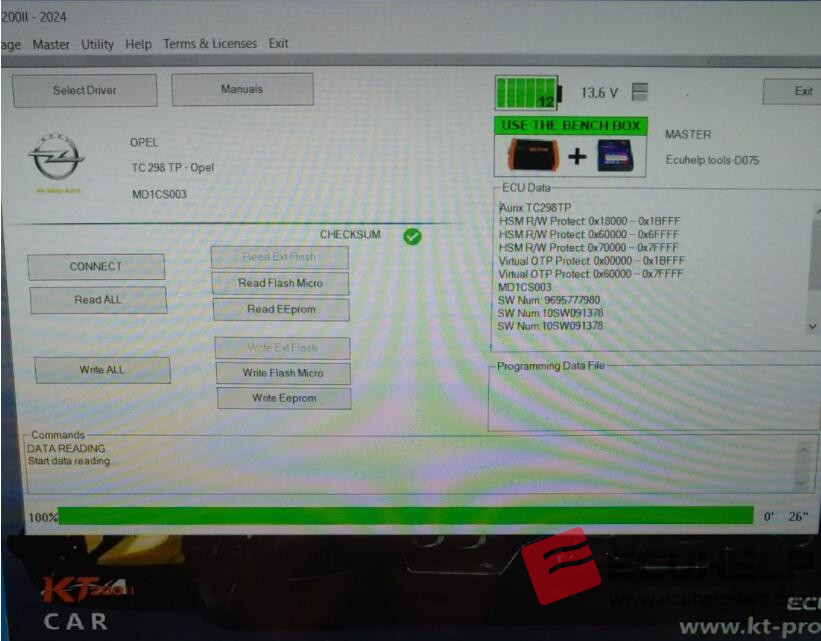

The efficacy of KT200II in handling the MD1CS003 ECU is unequivocal. As demonstrated in the second image, the KT200II reads the ECU data with a 100% success rate. This level of reliability is paramount for technicians and enthusiasts alike, seeking to tweak ECU settings for enhanced vehicle performance.

KT200II bench read write Opel Crossland 1.5D MD1CS003 2020-02

Wiring Diagram and Setup Instructions
For the technically inclined, the KT200II’s wiring diagram for the BOSCH MD1CS003 [TC298TP] specifically designed for the Opel diesel engine is a treasure trove of information.

To facilitate this connection, you will need:

A multifunction cable
The Bench Box V.2

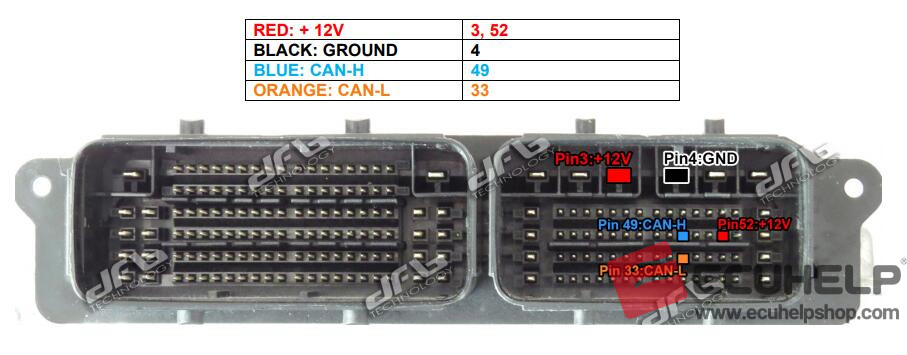

A detailed connection guide is provided in the third image, showing precisely how to connect the multifunction cable. This step is crucial for ensuring a secure and accurate read/write process.

KT200II bench read write Opel Crossland 1.5D MD1CS003 2020-03

Use KT200II to read and write using the following driver:
→ TC298TP – OPEL
→ MD1CS003

This streamlined process, coupled with the KT200II’s robust capabilities, makes tuning the ECU of the Opel Crossland 1.5D MD1CS003 2020 both an efficient and effective task. Whether you’re a professional seeking to enhance vehicle performance or an enthusiast aiming to understand your vehicle better, KT200II offers the tools and precision needed to achieve your goals.
