Question from a user:

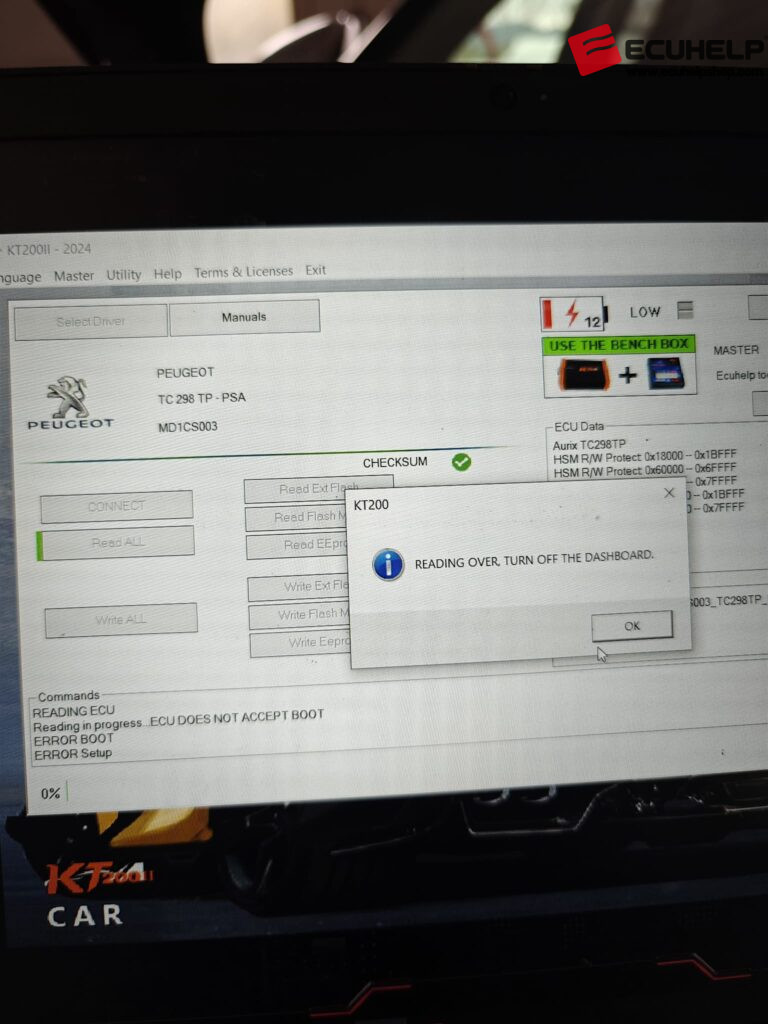

“I’m trying to read a Peugeot MD1CS003 ECU on bench using the ECUHELP KT200II, and I keep getting a “BOOT / ERROR Setup” message. The ECU ID reads fine, but it fails when I try to read the data. I’m not sure what caused the issue. Has anyone else run into this? See attached image: “BOOT / ERROR Setup”. Any tips?”
Possible reason:
Usually, a bad connection to a pin.
Confirm the pinout is 100% correct.

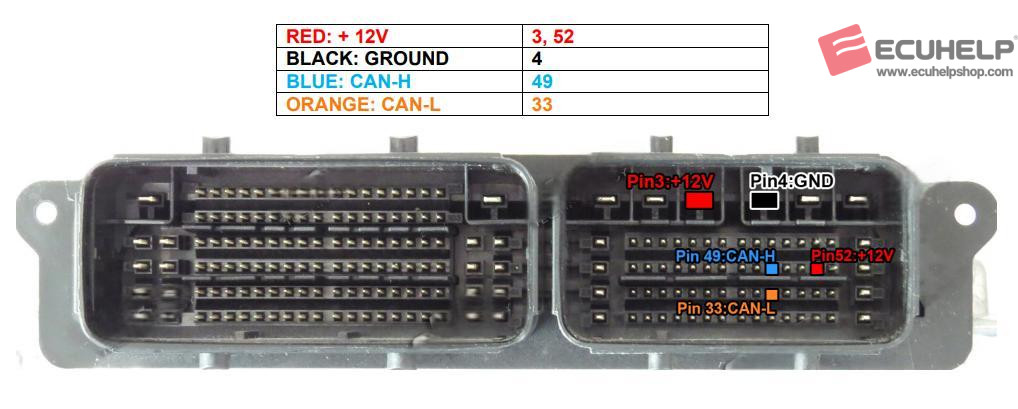

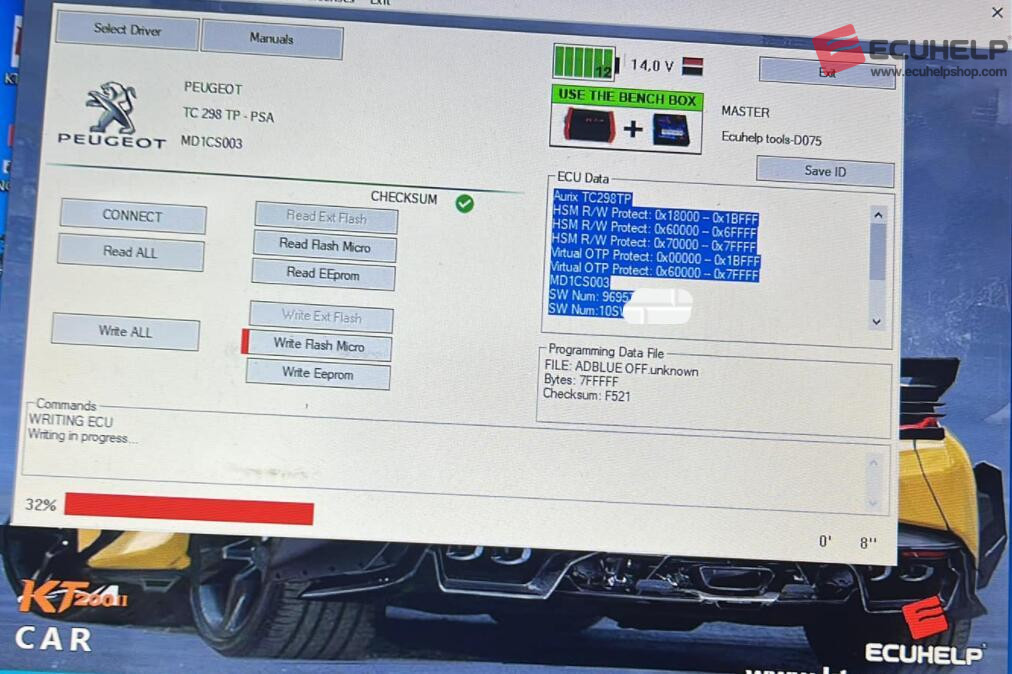

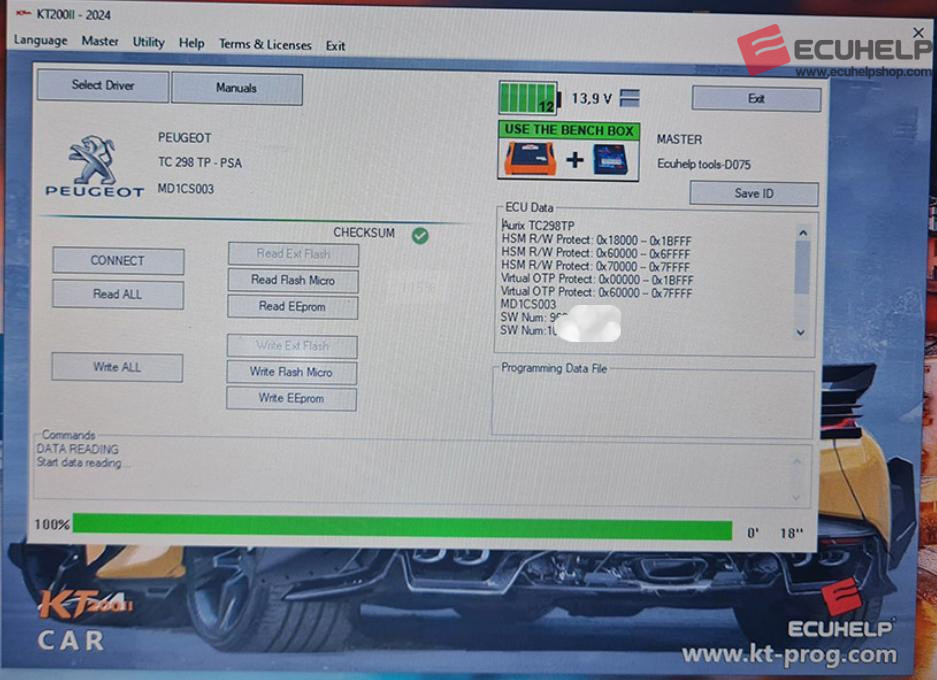

Finally, it worked, KT200II can read/write Peugeot MD1CS003 ECU on bench 100% ok. Finished job. Please follow the correct pinout listed below:
Use:
– Multifunction cable
– Bench Box V.2

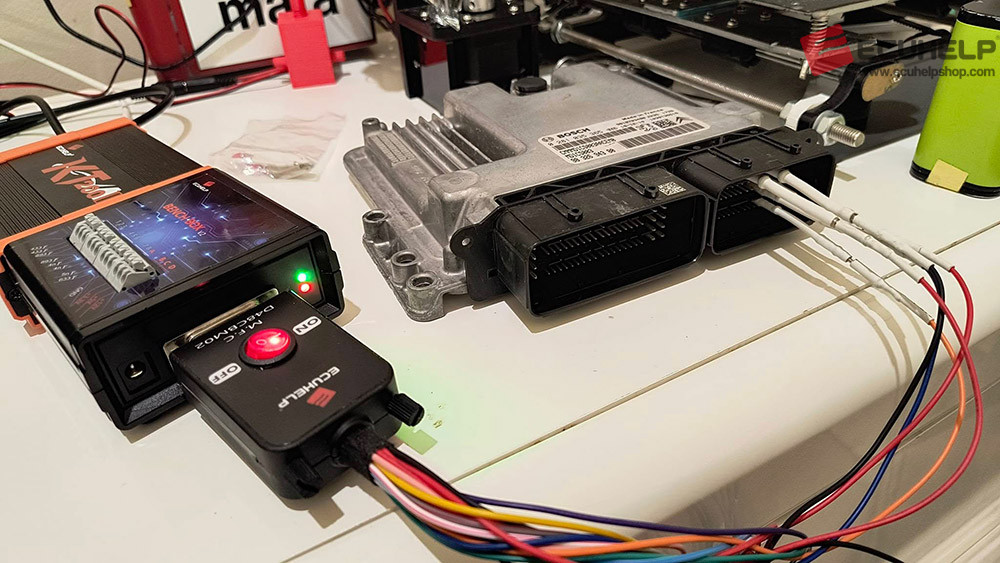

Connect the multifunction cable as shown below:
To read and write the MD1CS003, select the correct driver path in the KT200II software:
→ BENCH MODE
→ CITROEN / PEUGEOT
→ TC298TP – PSA
→ MD1CS003
If you’re using ECUHELP KT200II to program Peugeot MD1CS003 ECUs and encounter this issue, this guide should help you save time and avoid unnecessary troubleshooting.
