We have confirmed that the ECUHELP KT200 ECU Programmer is fully capable of reading and writing the CONTINENTAL Temic PLD Euro 3/4/5 [Diesel] ECU in Mercedes Benz trucks.
To successfully operate the KT200, our engineers at Ecuhelpshop.com recommend following the manual provided:
Here is the CONTINENTAL Temic Mercedes Truck Euro 3/4/5 ECU.
Connect the ECU using the OBD cable on the truck.
ATTENTION: In some trucks, the key lock doesn’t reset only the +12V of ignition, but it switches off the entire ECU. In these cases it is necessary to connect as follows.
(Refer to the next page for details)
Procedure:

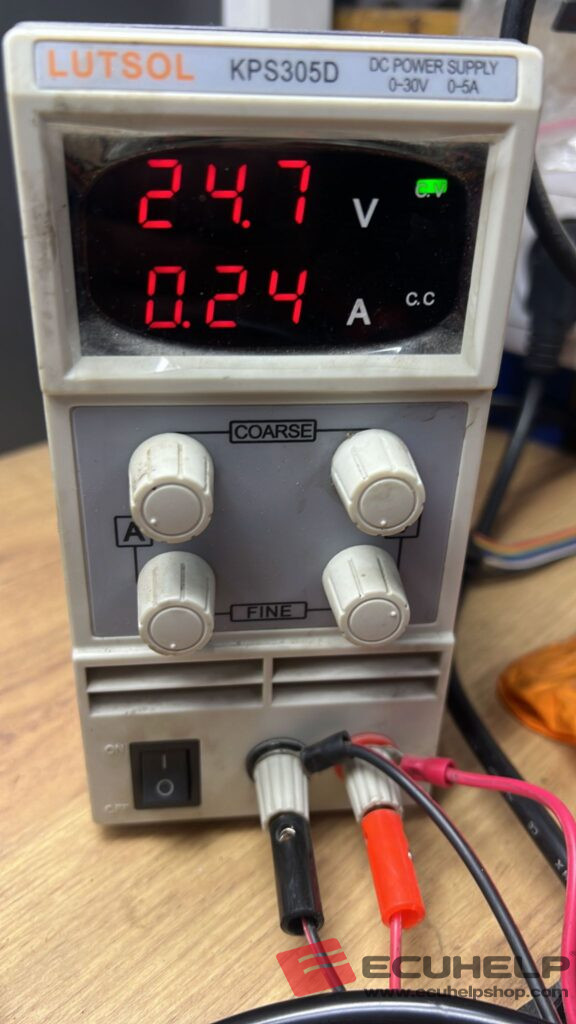

After making the necessary connections as shown below, power up the ECUHELP KT200 2023 software with a +24V battery. Select the appropriate driver:
→ E3/E4/E5 ECU TEMIC FULL SYSTEM
Feedback from a user:
Temic pld euro 5
ID is okay, but cannot read
Tested using the truck’s OBD cable on the table and Bench box
Here are some helpful tips:
1. Follow the provided wiring diagram for a secure and functional connection.
2. Reading and writing Temic PLD can be challenging, so pay close attention to this position.
3. Read/write ECU in Full system mode and no need Bench Box.

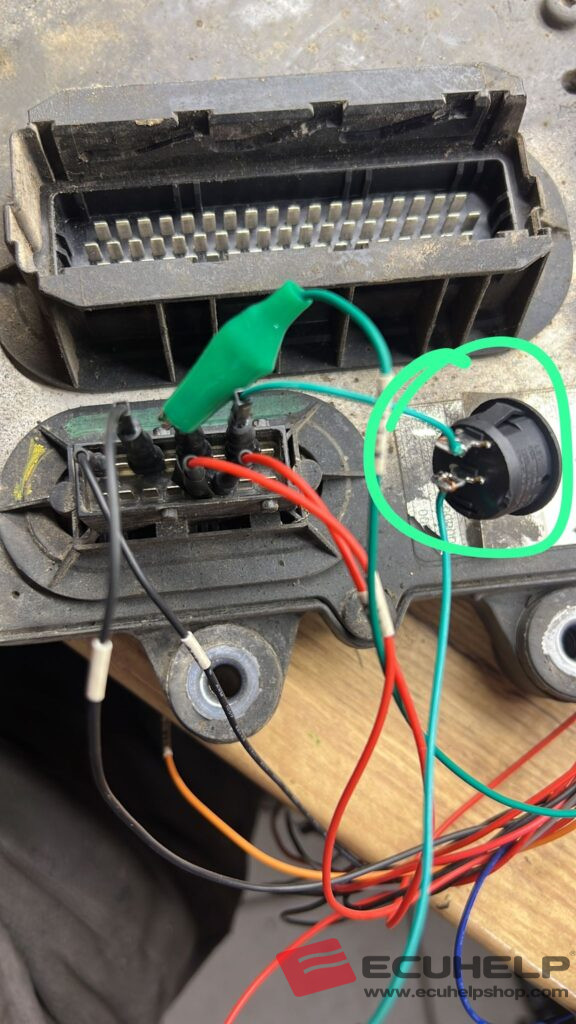

5. An additional tip for your reference: Use an extra switch (from MPC red to switch) for ignition, for the switching operations (not use MPC red switch).
Please note that these guidelines ensure a smoother operation when utilizing ECUHELP KT200 ECU Programmer for reading and writing the CONTINENTAL Temic PLD Euro 3/4/5 [Diesel] ECU in Mercedes Benz trucks.
