ECUHELP KT200 ECU Programmer has been successfully tested for reading and writing the Peugeot 207 1.6HDi EDC17C10 Bench Mode. Below are the detailed steps, wiring diagrams, and necessary drivers for the operation.

Connection Guide

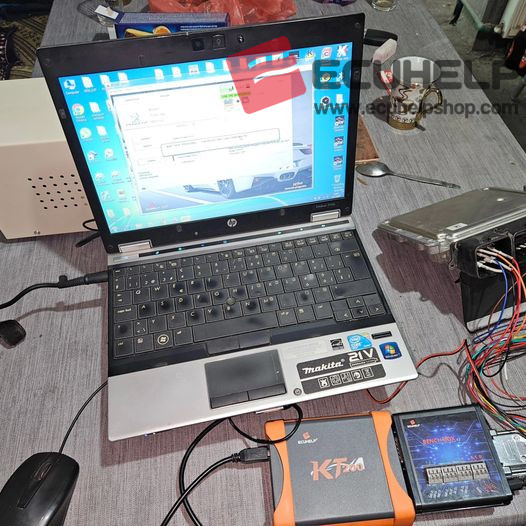

Image 1: Shows how the KT200 is connected to the bench box, the ECU EDC17C10, and the computer. This image also illustrates the reading process with the KT200.
KT200 Read Write Peugeot 207 1.6HDi EDC17C10 Bench Mode-01

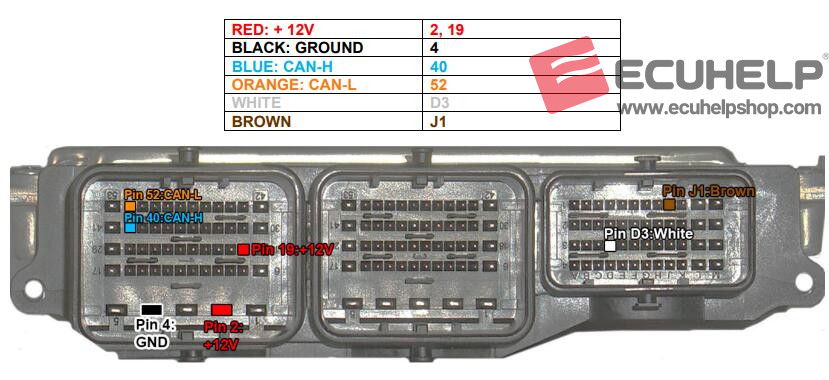

Wiring Diagram for BOSCH EDC17 C10 [1796 + EXT] – Peugeot, Citroen, Fiat [Diesel]

Kit to Use:
Multifunction Cable
KT200 Read Write Peugeot 207 1.6HDi EDC17C10 Bench Mode-02

To read and write use the following driver:
→ TC1796 – PSA or FCA
→ EDC17 C10

The KT200 is a reliable and efficient ECU Programmer for reading and writing the Bosch EDC17C10 ECU in the Peugeot 207 1.6HDi Bench Mode. By following the provided wiring diagrams and driver instructions, users can ensure a smooth and successful operation. This setup is also compatible with diesel models from Peugeot, Citroen, and Fiat, demonstrating the versatility of the KT200 for various ECU programming tasks.

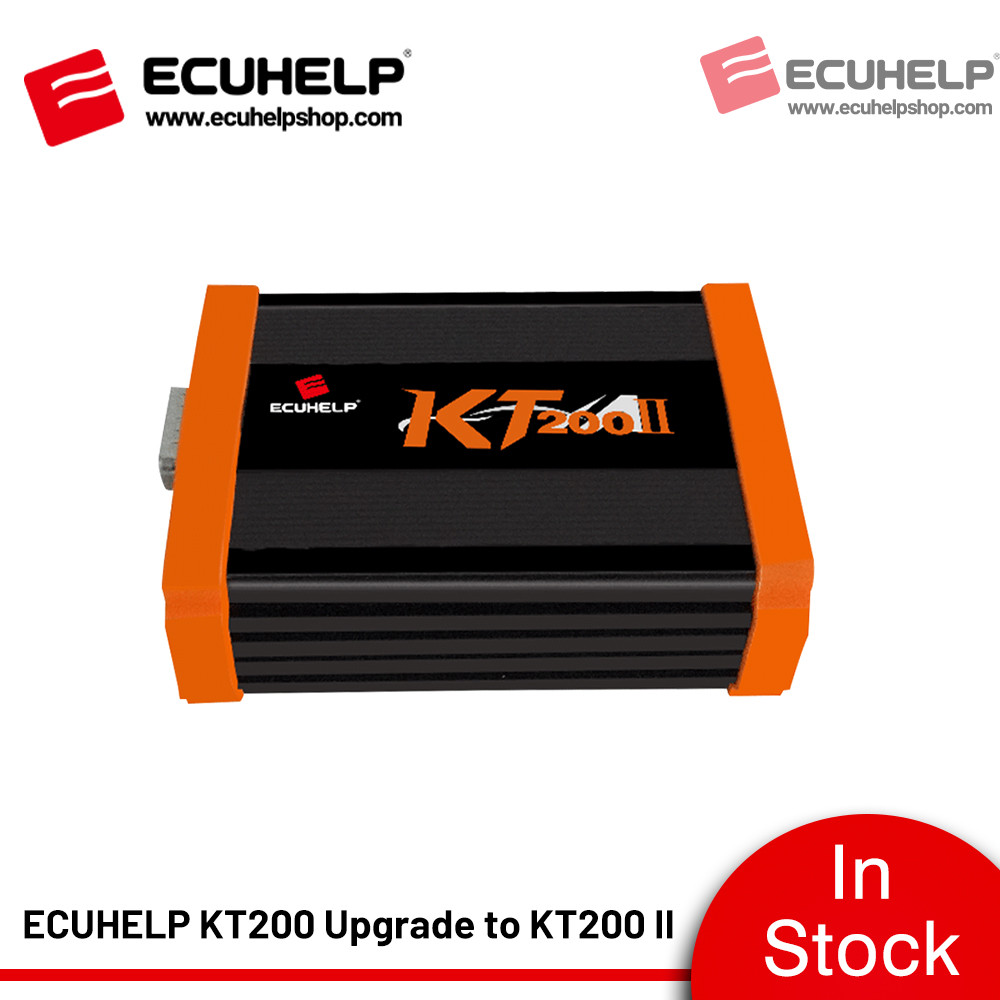

Upgrade to ECUHELP KT200 II
The KT200 has been upgraded to the KT200 II, which offers improved performance. You can upgrade your device by purchasing the PCB board.
