The KT200 II ECU Programmer has been successfully tested for reading and writing capabilities on the Iveco Tector Eurocargo E5 equipped with the Edc7uc31 ECU. This process in boot and JTAG/BDM mode.
ECU Programmer: KT200 II
Vehicle and ECU Type: Iveco Tector Eurocargo E5, Edc7uc31
Supported Modes: Boot and JTAG/BDM (not Bench Mode)
Visual Demonstration:

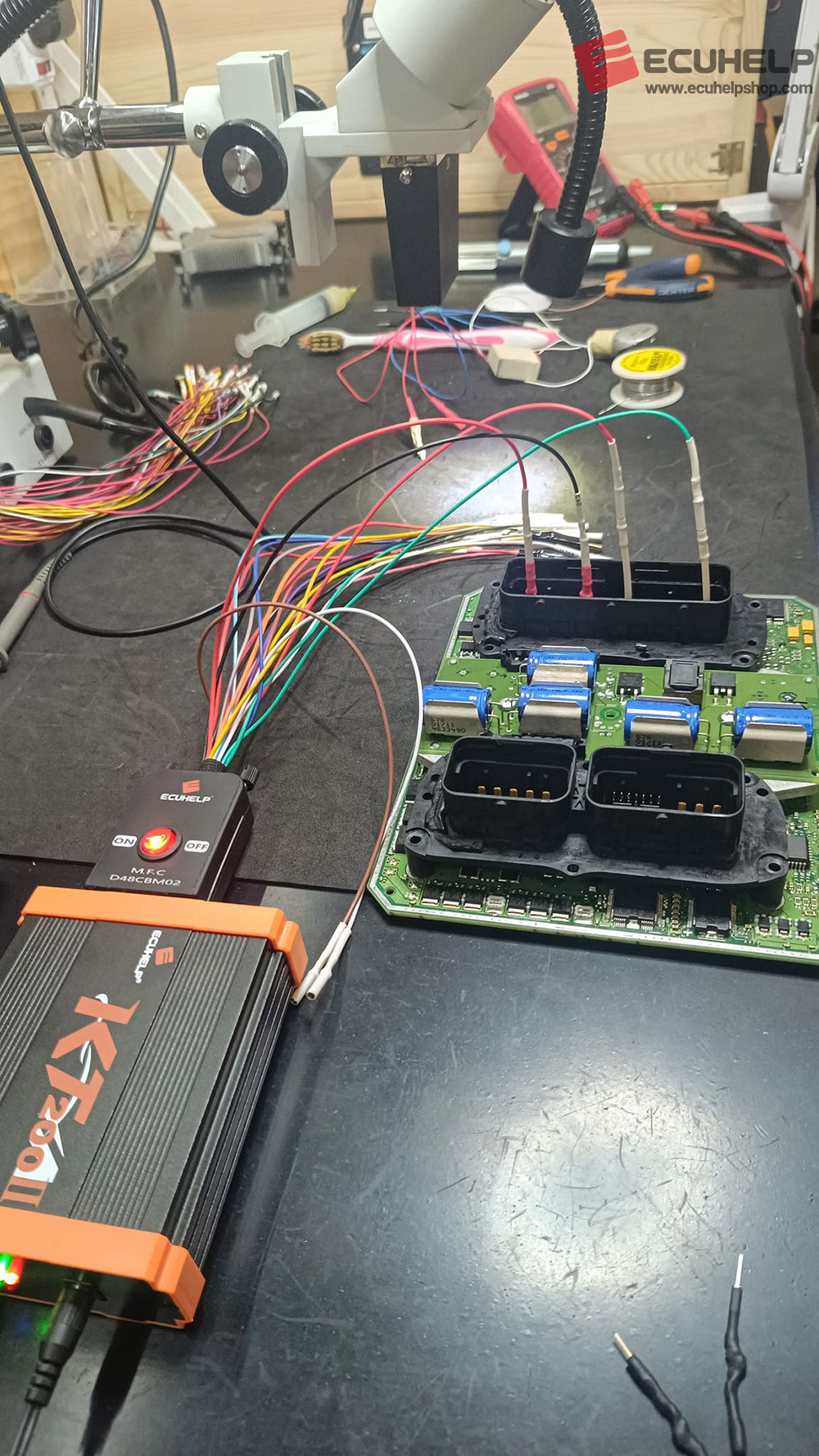

The series of images below illustrate the detailed process of connecting and using the KT200 II to read from the Edc7uc31 ECU. These images provide a clear visual guide on the setup involving the KT200 II, the ECU, and the computer, showcasing the correct configurations and connections for successful programming.
Conclusion:
The KT200 II proves to be an efficient tool for managing ECU programming tasks on the Iveco Edc7uc31, especially in boot and JTAG/BDM modes. By providing detailed visual documentation, the KT200 II enhances user understanding and execution of necessary programming operations, ensuring high precision and reliability in handling specific ECU types.
