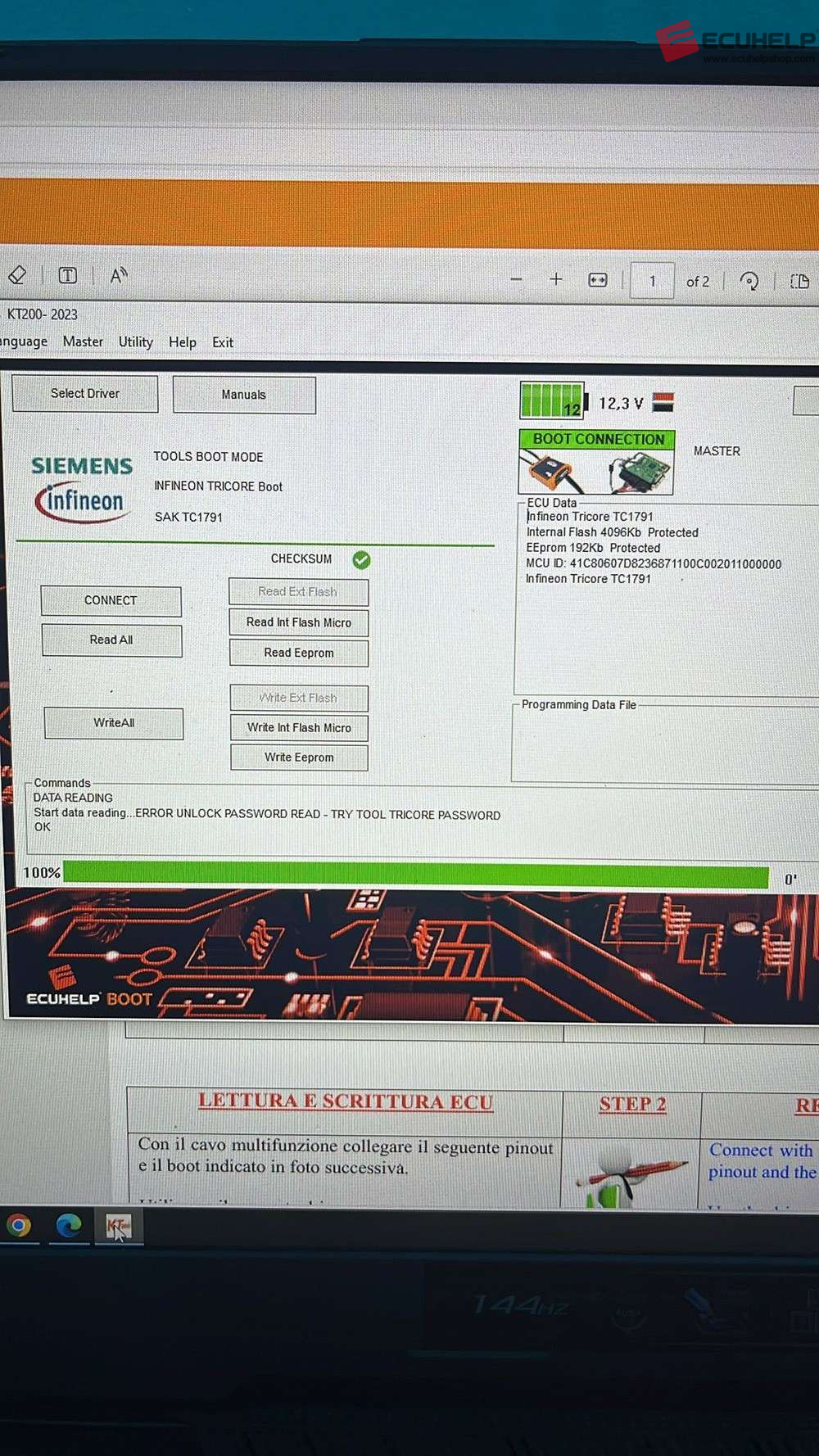

Hi guys need a little advice here , i am using ECUHELP KT200II doing a sid211 ford transit 2018 , ecu is not unlucked so only readed the password by obd in the customer shop , and bring the ecu with me to boot it at home , i have opened the ecu and its connecting ok but tool does not see the password.
Support:
The password goes in the main program folder.
Kit to use:
– OBD cable
– Multifunction cable

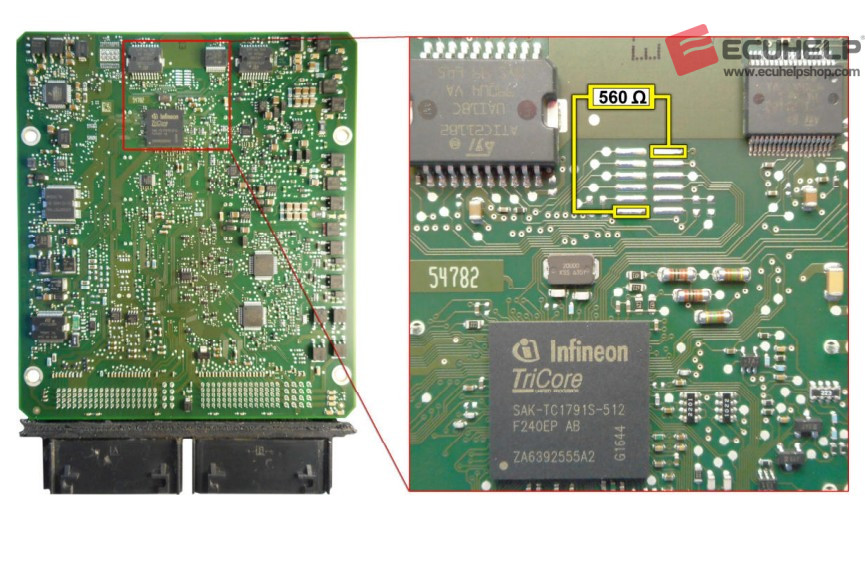

– 1 resistance of 560 Ω
PASSWORD SEARCH
The password of this ECU is found at the end of reading the file using the serial driver via the OBD
plug of the vehicle.
An example of serial driver for this ECU:
→ CAR
→ FORD
→ TRANSIT FT
→ 2.0 TDCI 105CV CONTINENTAL SID211 *CAN

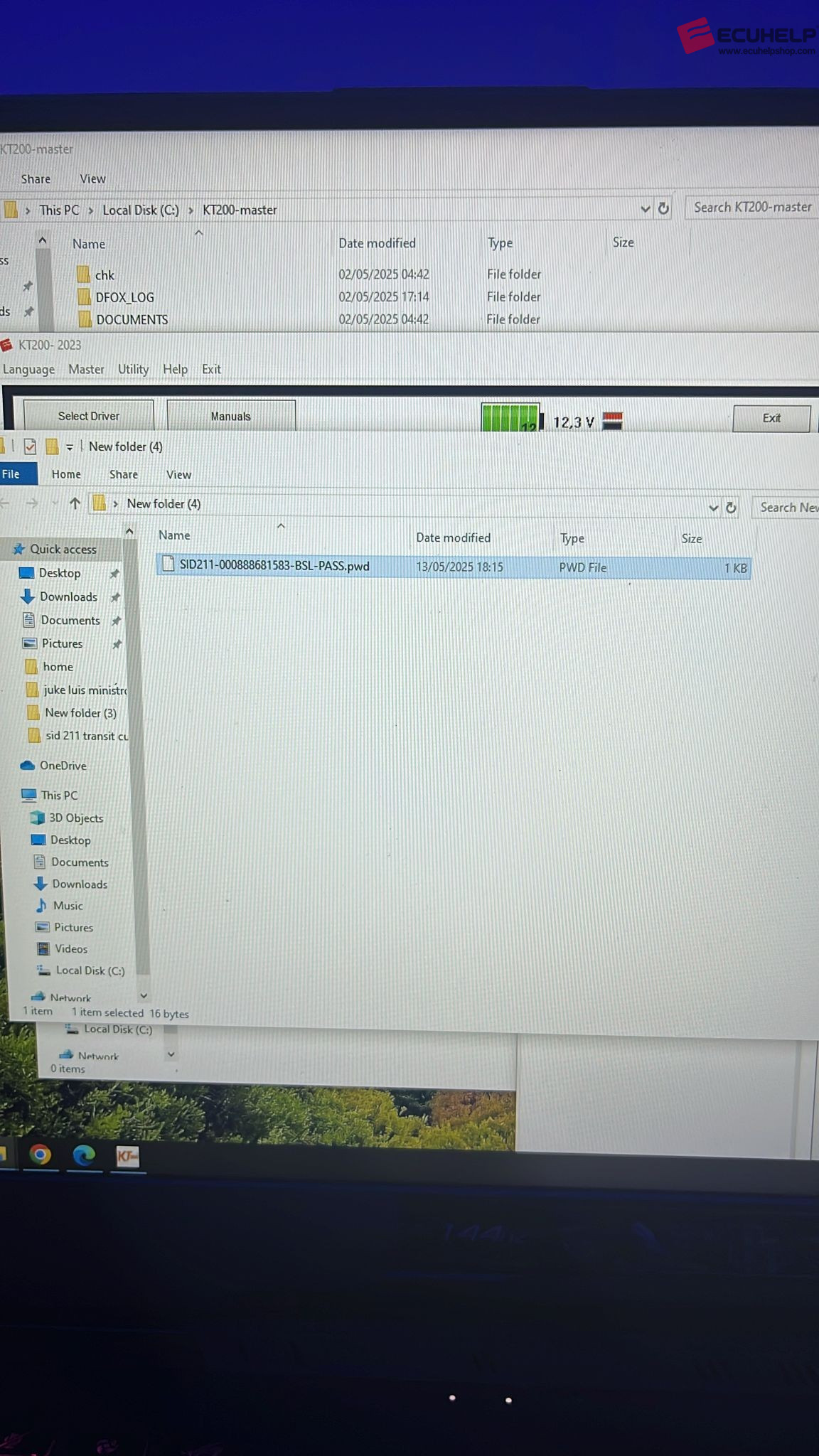

At the end of the reading, therefore, the KT200II software saves the password in a file called
Password_adv.bin in the same folder chosen for saving the file of the car.
To read and write in boot mode the ECU, copy this file in the folder where the program is installed.
READ AND WRITE ECU

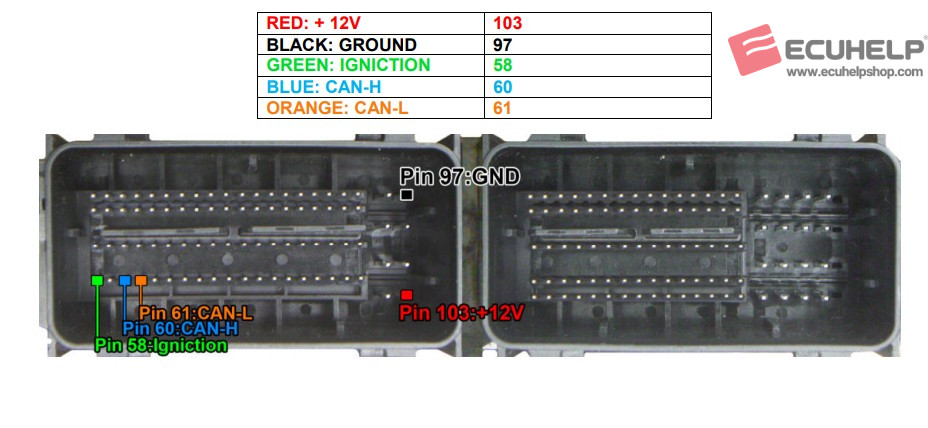

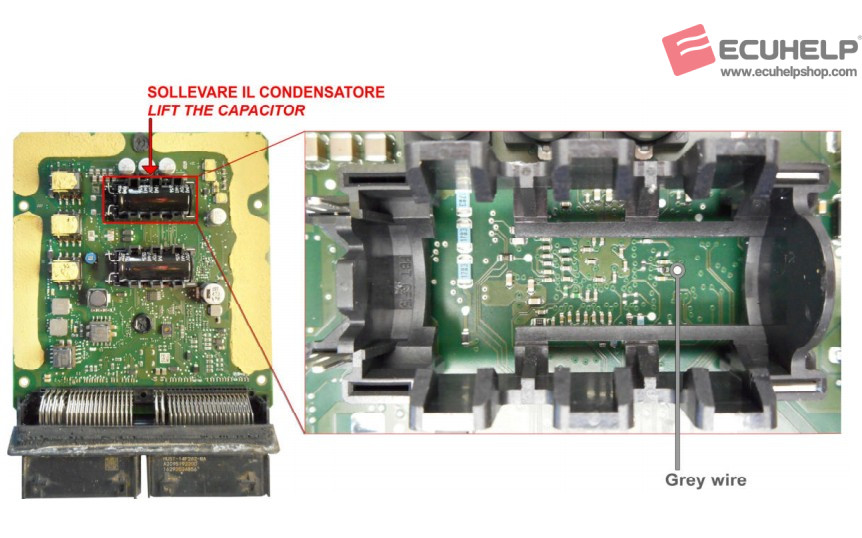

Connect with the KT200II multifunction cable using the following pinout and the boot shown below
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1791
