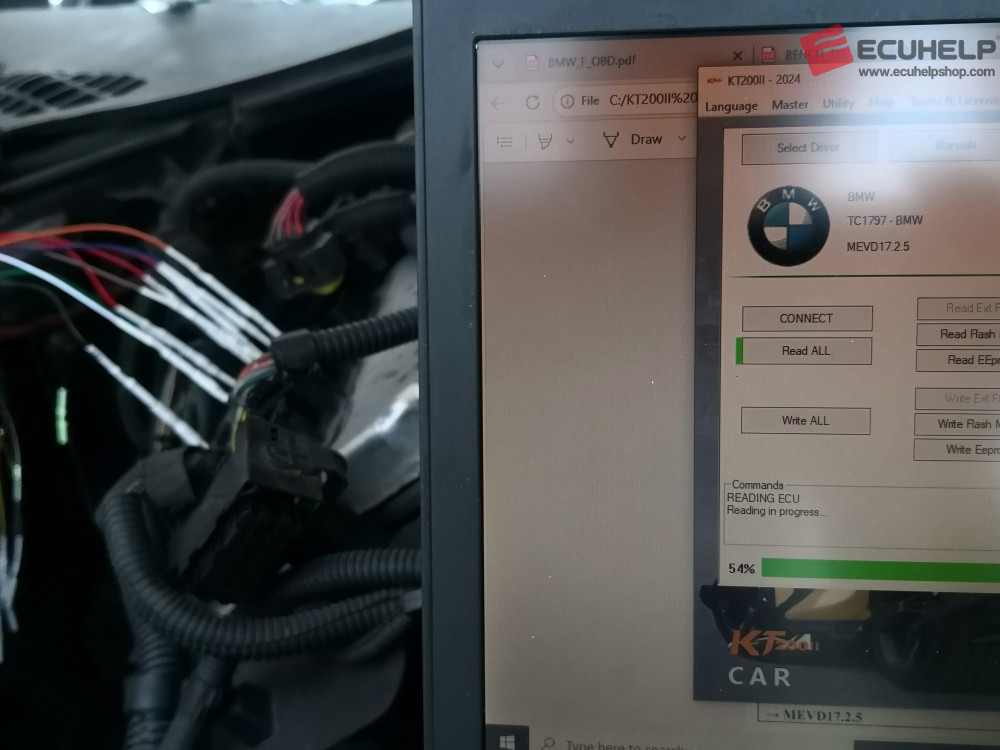

ECUHELP KT200II ECU Programmer is tested to read and write BMW F30 320iED N13 MEVD17.2.5 on Bench. Bench Read Ok. 5-8 mins and Bench Write Ok. 3-5 mins.
Test Information:
Vehicle: BMW F30 320iED N13
ECU: Bosch MEVD17.2.5
Programming Mode: Bench Mode
Tool: ECUHELP KT200II ECU Programmer

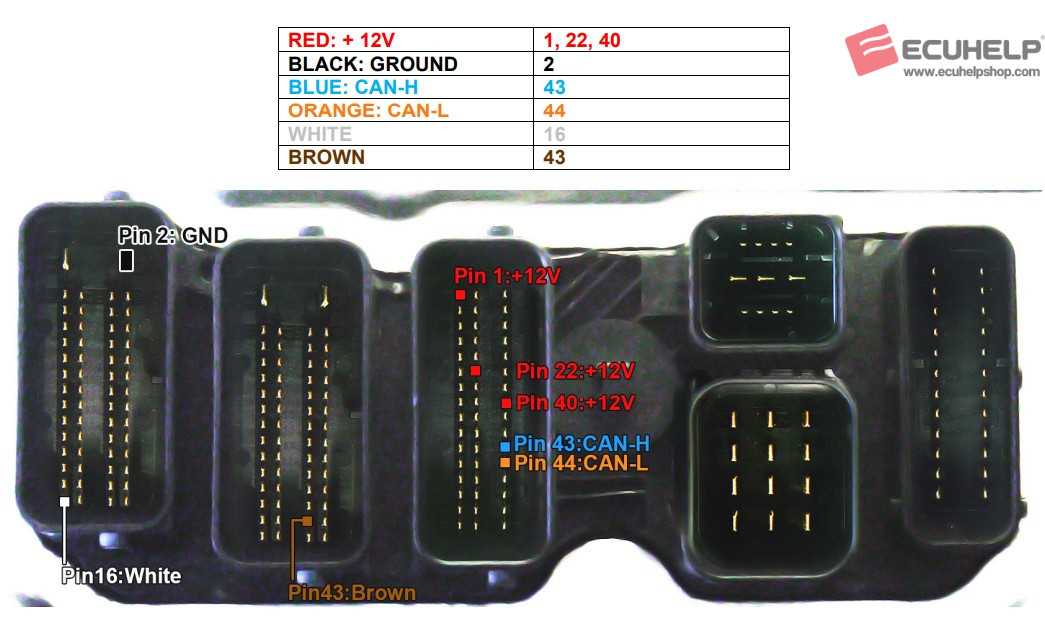

KT200II Wiring Diagram of BOSCH MEVD17.2.5 [ 1797 ] – BMW [Gasoline]:
KT200II reads and writes use the following driver:
→ BENCH TRICORE
→ BMW
→ TC1797 – BMW
→ MEVD17.2.5
Summary:
The ECUHELP KT200II once again demonstrates strong compatibility with modern BMW ECUs. For users working with BMW F30 320iED N13 Bosch MEVD17.2.5, KT200II provides a fast and dependable Bench programming solution with excellent read/write performance.
