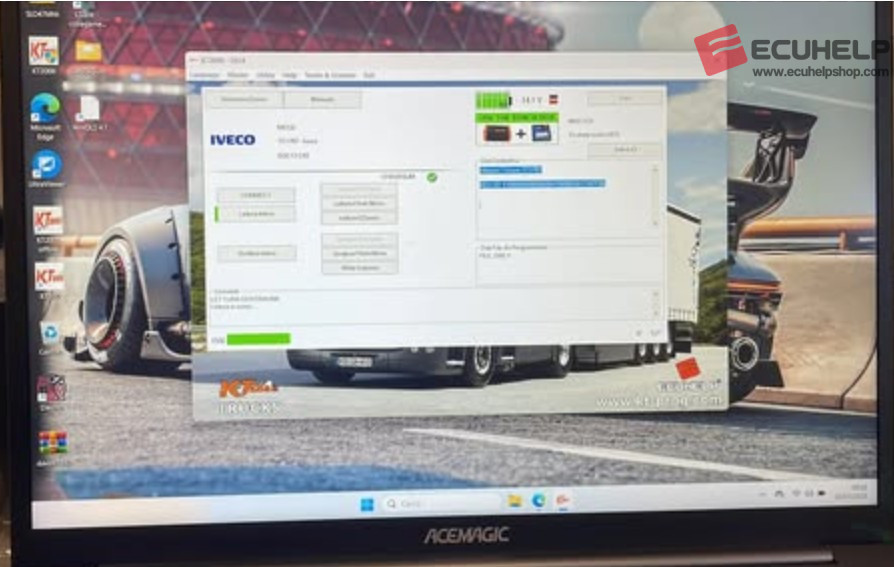

ECUHELP KT200II User Feedback:
IVECO DAILY 140-36
EDC17C49
Read/Write ok
Checksum ok
Stage 1
Adblue Off

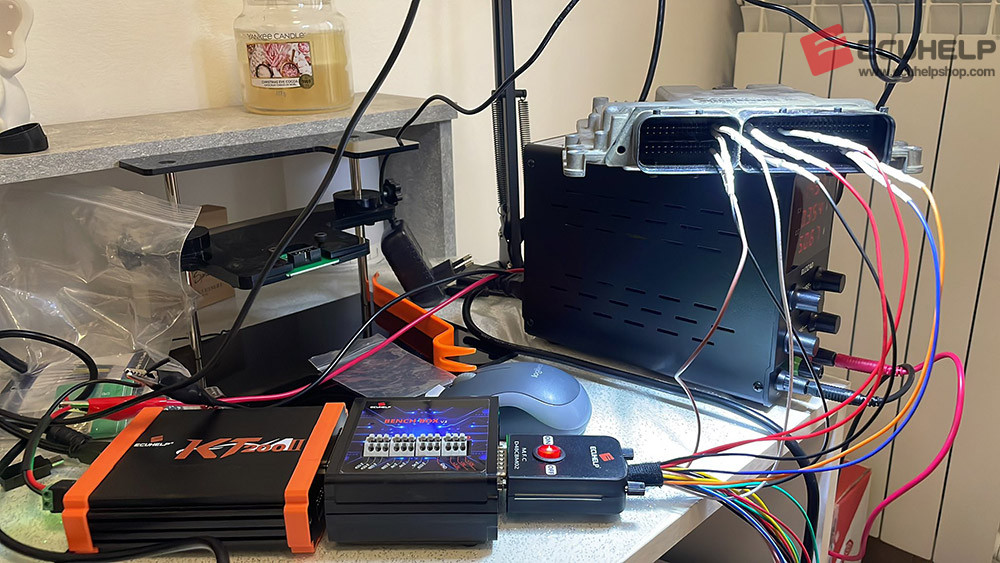

Use:
– Multifunction cable
– Bench Box V.2

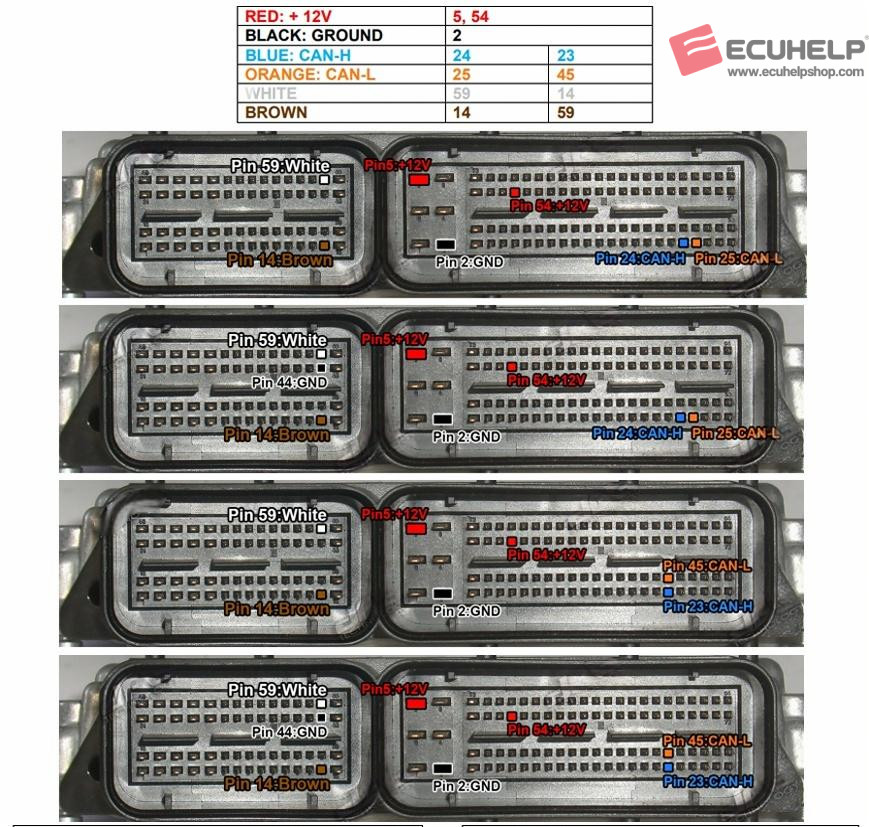

Connect the multi-function cable as follows. For this ECU there are 5 different types of hardware versions, try the following 5 combinations in series. The ECU will not suffer any damage during connection tests.
Attention:

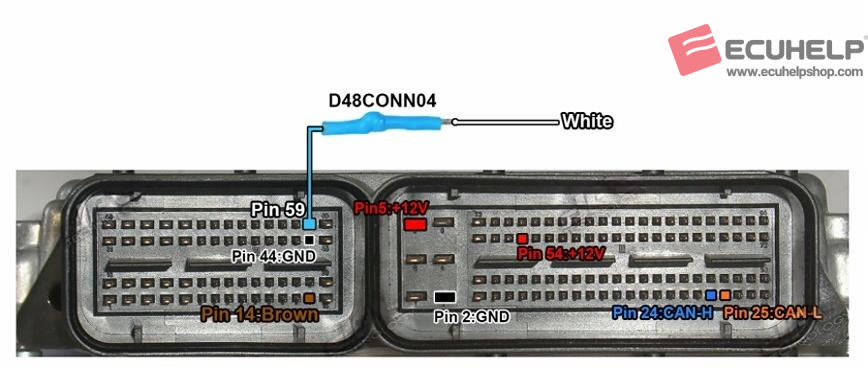

If none of the previous 4 modes allows bench mode communication, connect as in the following photo using the D48CONN04 connector:
Use KT200II to read and write use the following driver:
→ BENCH MODE
→ IVECO
→ TC1797 – IVECO
→ EDC17 C49
