ECUHELP KT200II ECU Programmer has been successfully tested for reading and writing the SID805 ECU on PSA Peugeot 107 and Citroën C1 1.4 HDI Full System Mode.

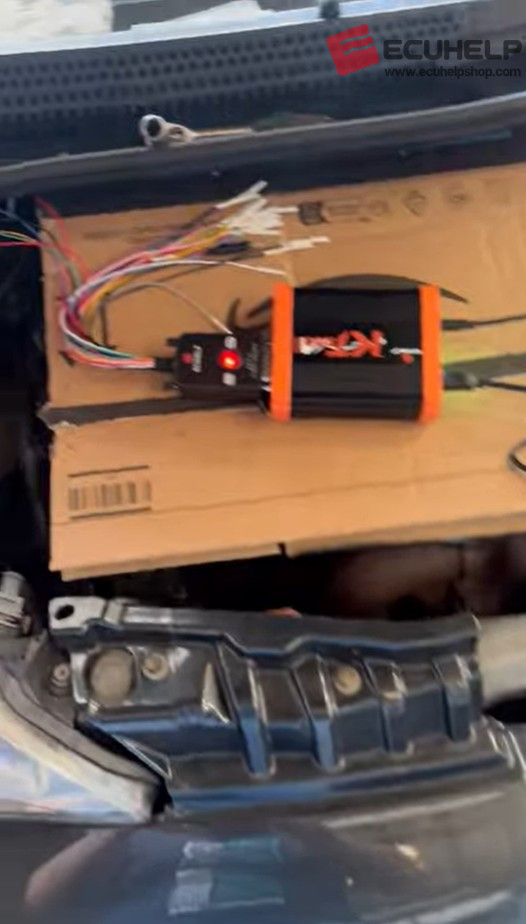

Hardware Connection:
To establish a connection with the ECU, use the Multifunction Cable.
(Refer to Figures 1–3 for connection diagrams.)
Operation Status:
Reading: 100% OK
Writing: 100% OK
(See Figures 4–5 for operation results.)
Conclusion:
ECUHELP KT200II ECU Programmer is fully compatible with the SID805 ECU in Full System Mode for the PSA models.
