ECUHELP KT200II Read Write TRW EMS2.3 Boot Mode

Byecuhelpshop

Jan 25, 2026

ECUHELP KT200II ECU Programmer is confirmed to read/write TRW EMS2.3 Boot Mode.

The KT200II Kit to use:
– Multifunction cable
– Rainbow flat cable

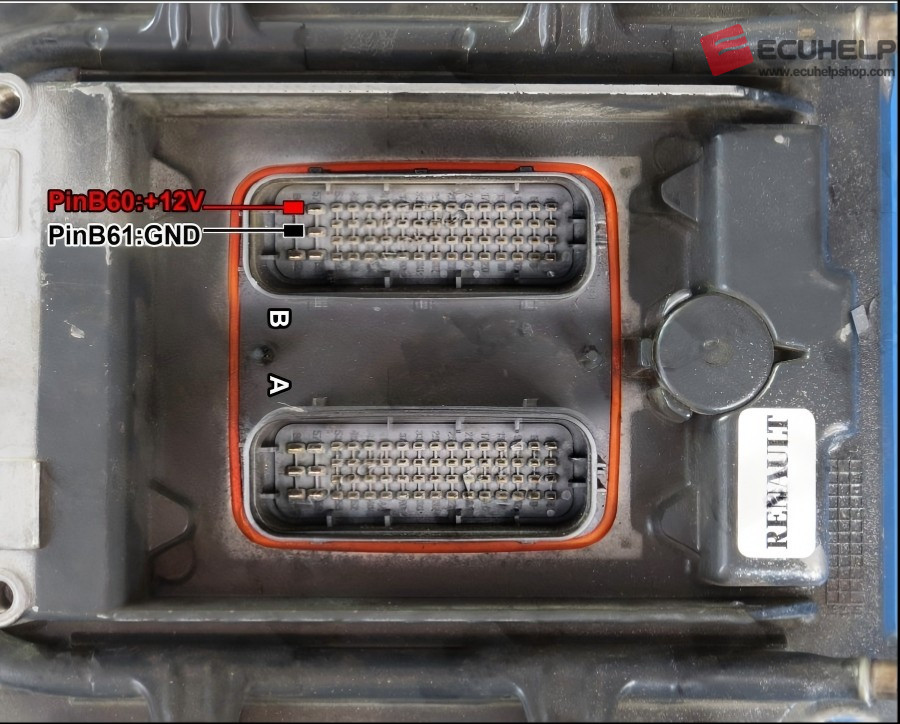

Connect the KT200II multifunction cable as follows:
ECUHELP KT200II Read Write TRW EMS2.3 Boot Mode-01

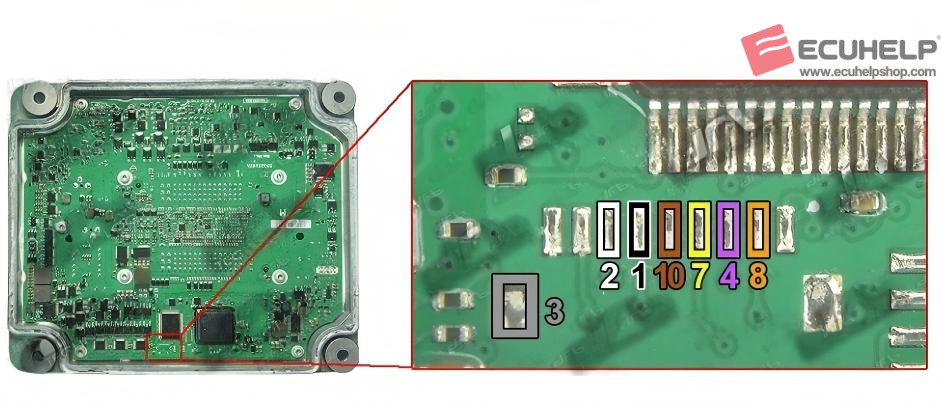

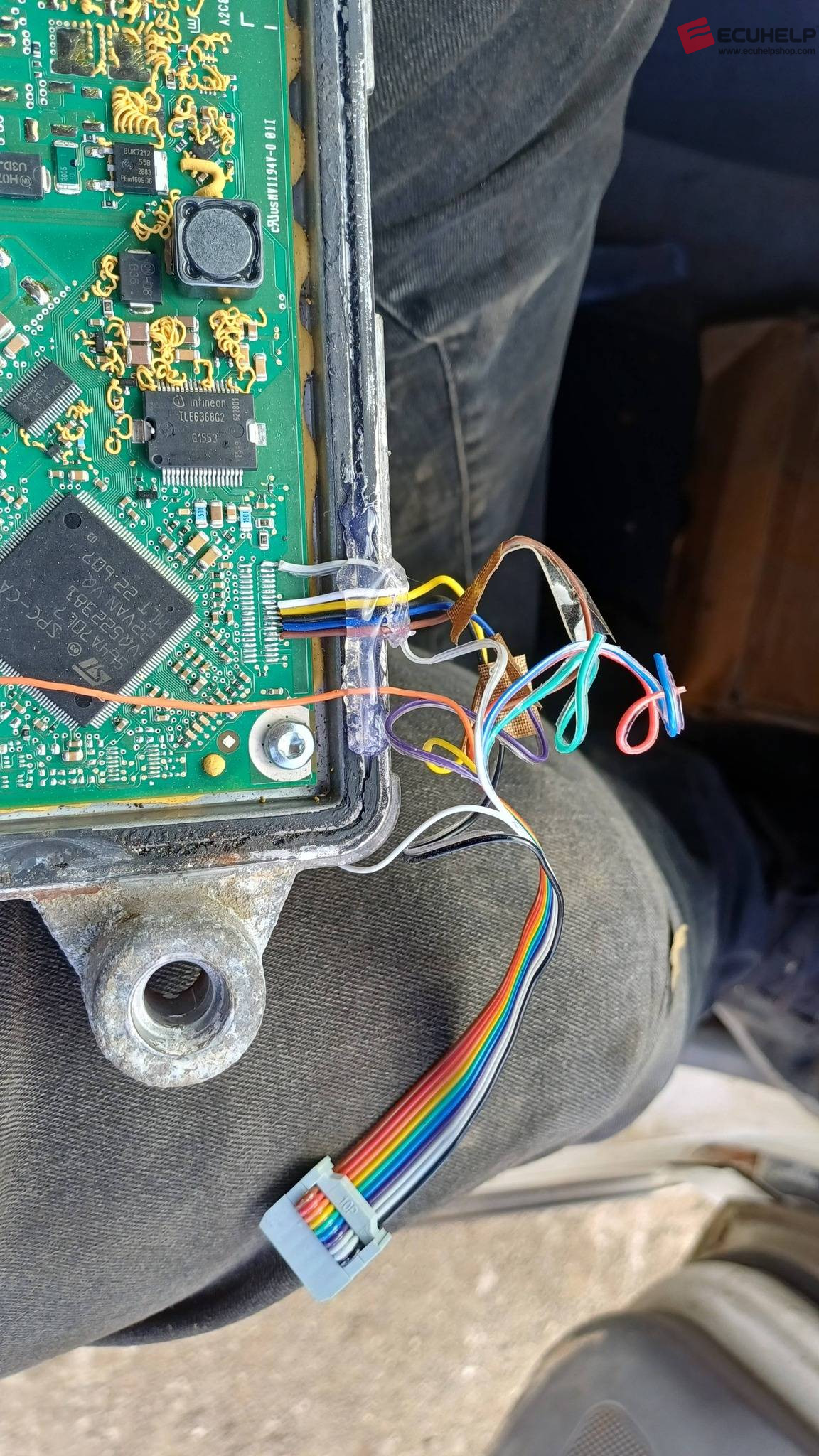

Solder the rainbow flat cable:
ECUHELP KT200II Read Write TRW EMS2.3 Boot Mode-02 ECUHELP KT200II Read Write TRW EMS2.3 Boot Mode-03

To read and write use the following driver of KT200II:
> BDM/JTAG
> JTAG NEXUS
> MPC/SPC56xx
ECUHELP KT200II Read Write TRW EMS2.3 Boot Mode-04
