ECUHELP KT200II

ECUHELP KT200II read/write Me7.1.1 boot mode

Byecuhelpshop

Jul 10, 2025

ECUHELP KT200II ECU Programmer is confirmed to read/write Me7.1.1 boot mode.

Kit to use:
– Multifunction cable
– 1 resistance of 10 KΩ

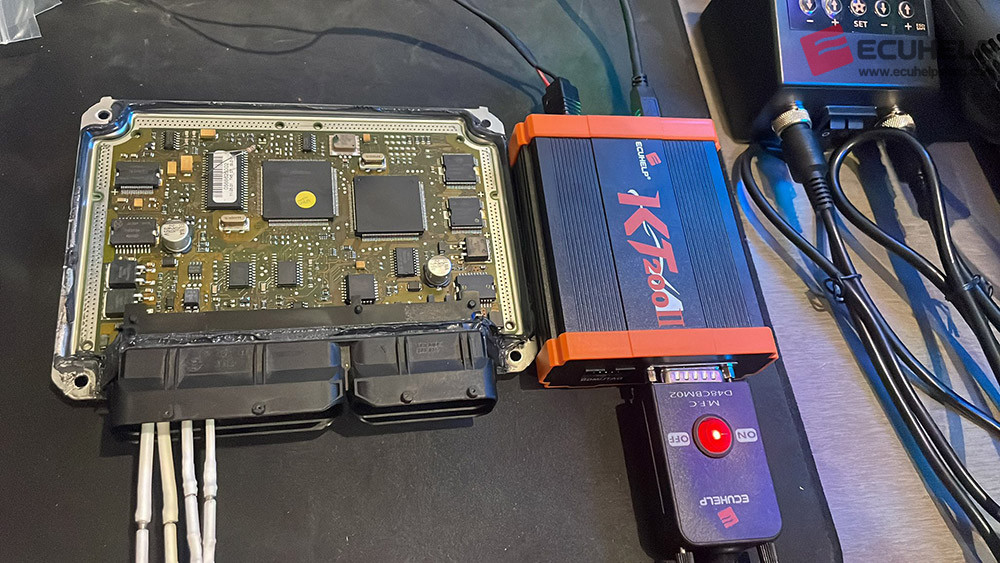

Connect the multifunction cable and the resistance as shown.
ECUHELP KT200II read/write Me7.1.1 boot mode-01 ECUHELP KT200II read/write Me7.1.1 boot mode-02

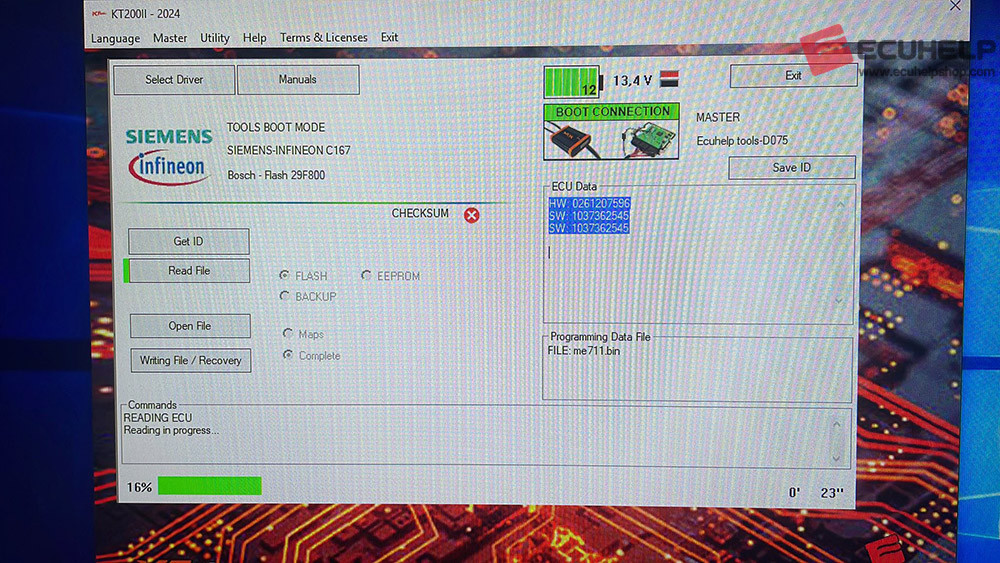

KT200II reads and writes use the following driver:
→ TOOLS BOOT MODE
→ SIEMENS-INFINEON C167
→ Bosch – Flash 29F800
ECUHELP KT200II read/write Me7.1.1 boot mode-03
