The ECUHELP KT200II ECU Programmer has been successfully tested to bench read and write the BMW 535D equipped with Bosch EDC16CP35 ECU.
Below is a step-by-step overview of the bench operation process.

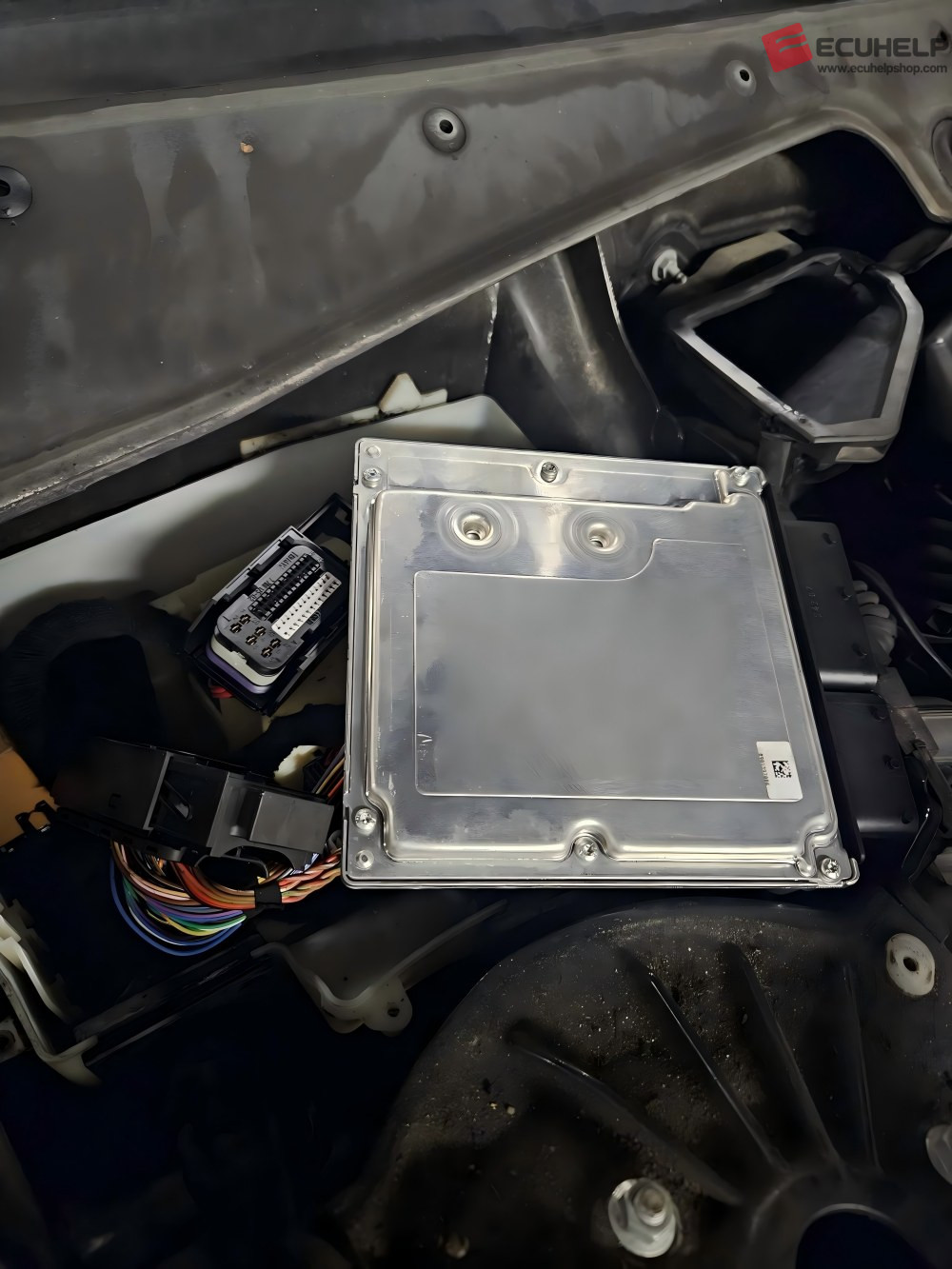

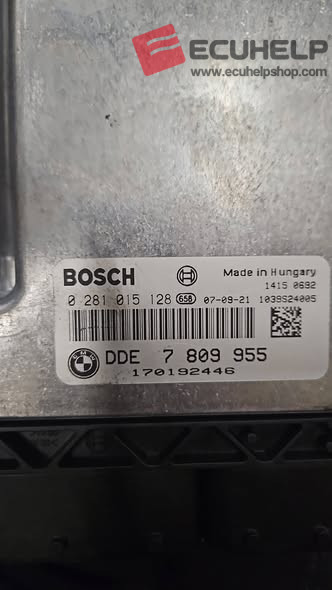

First, identify the ECU model: EDC16CP35 installed in the BMW 535D 2007 E60/E61:

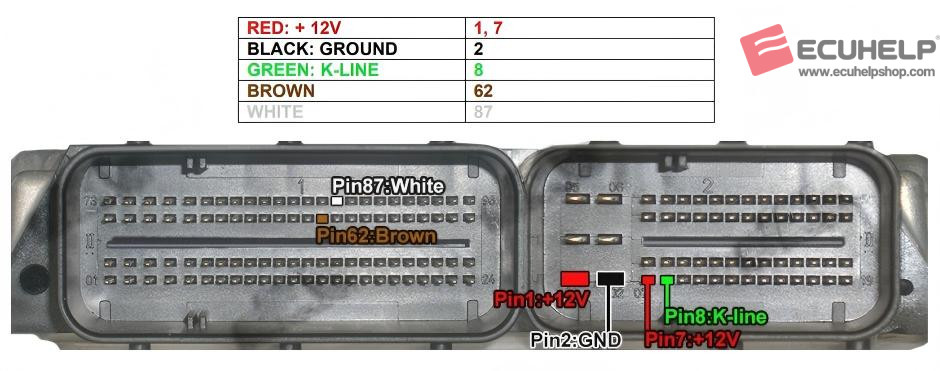

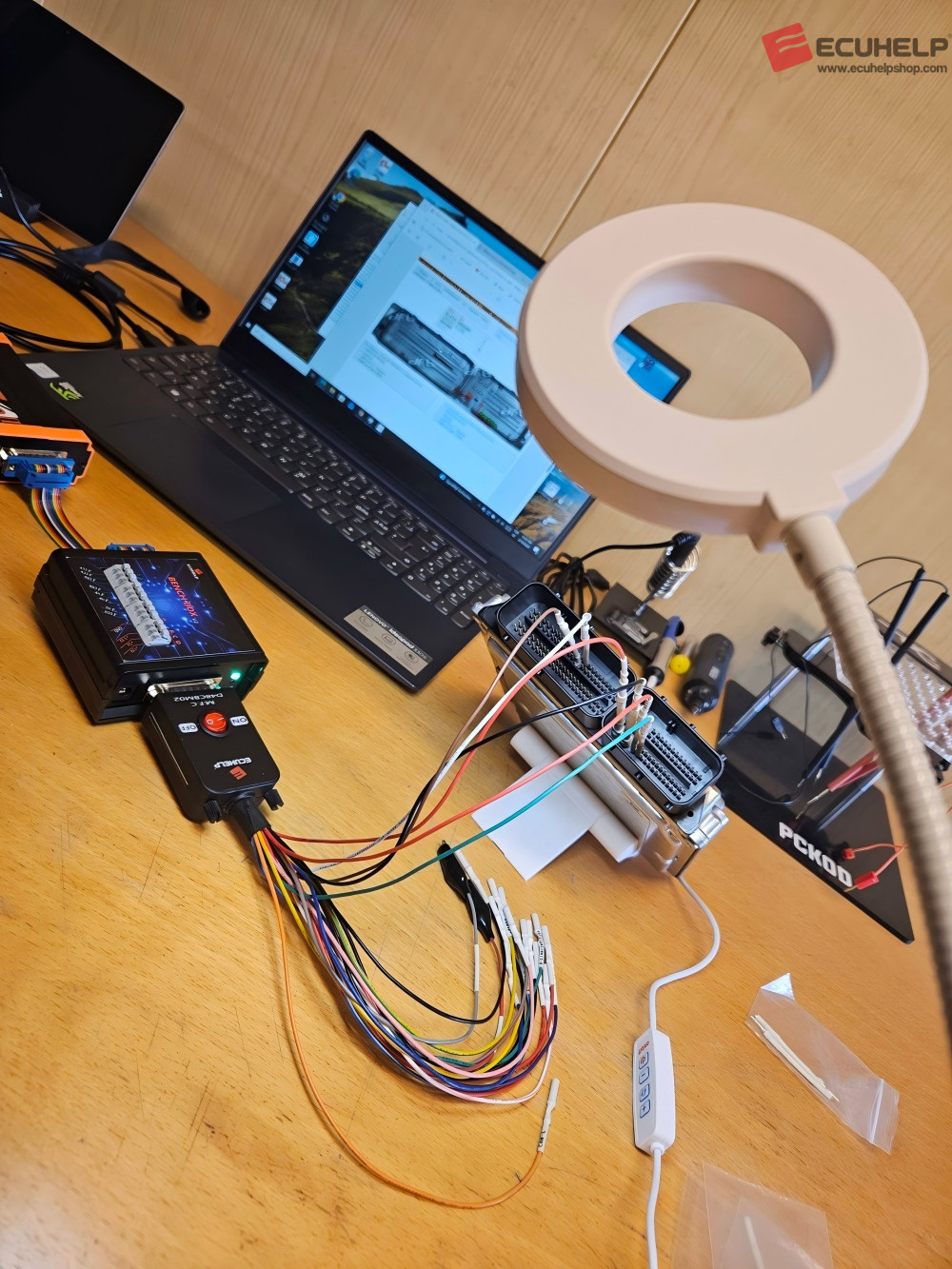

Then, follow the official wiring diagram to connect the multifunction cable using the Bench Box.:

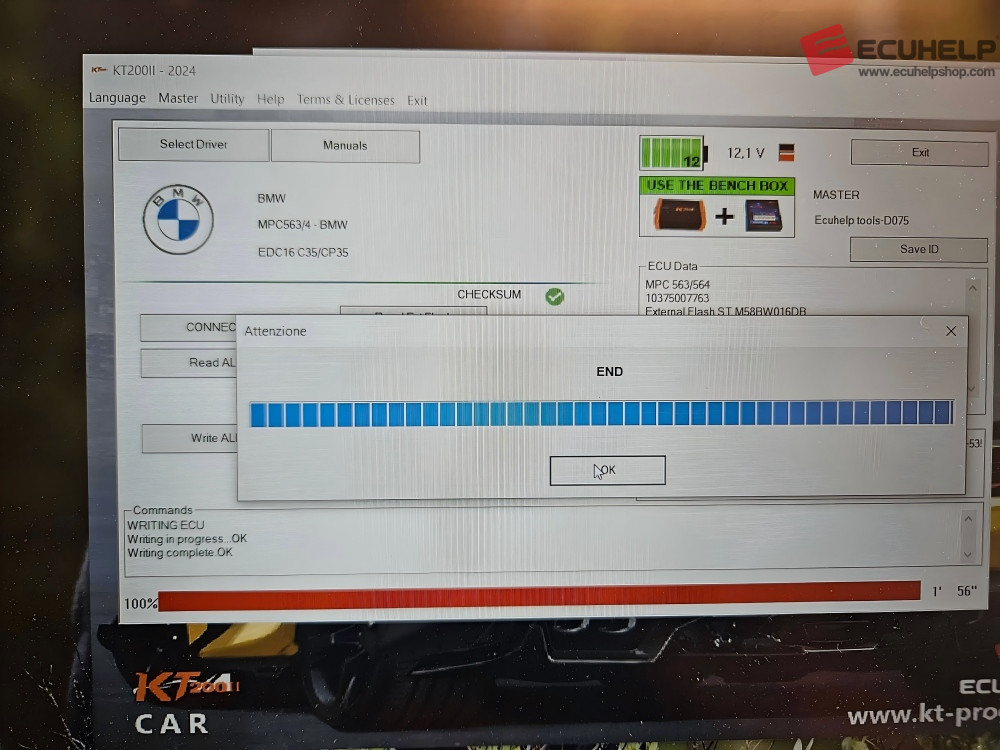

Finally, to read and write use the following driver in the KT200II:
→ BENCH MODE
→ [brand]
→ MPC563/4 – [brand]
→ EDC16 C35 / CP35
Conclusion:
This confirms that ECUHELP KT200II supports stable bench read and write for BMW 535D 2007 E60/E61 with EDC16CP35 ECU.
If you need reliable bench programming for BMW diesel ECUs, KT200II is a proven and stable solution for workshop use.
